Fig. 9

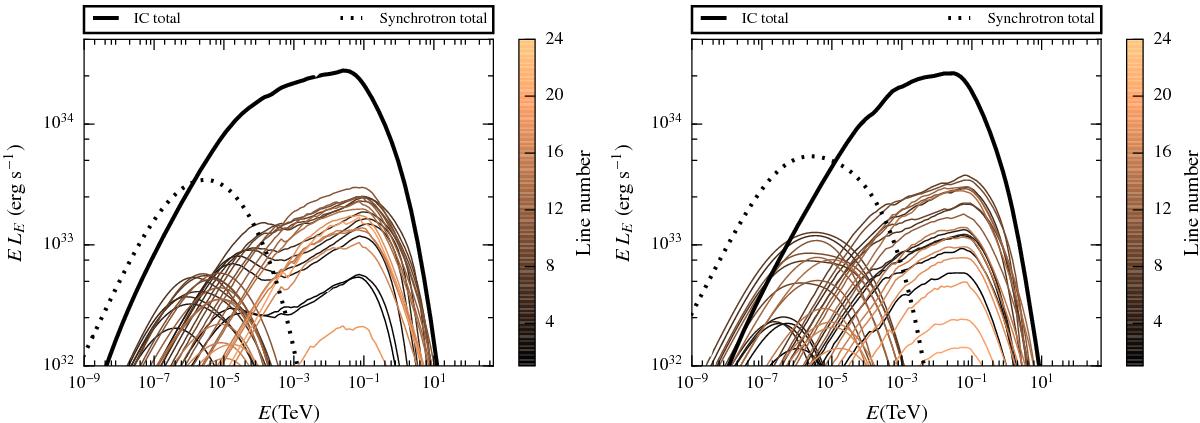

Contribution of each streamline (numbered as in left panel of Fig. 1) to the overall synchrotron (dotted line) and IC (solid line) SED. The no clump (left) and the large clump (right) scenarios are both computed for a low magnetic field (χB = 10-3) and φ = 90°.
This figure is made of several images, please see below:
