Fig. 2

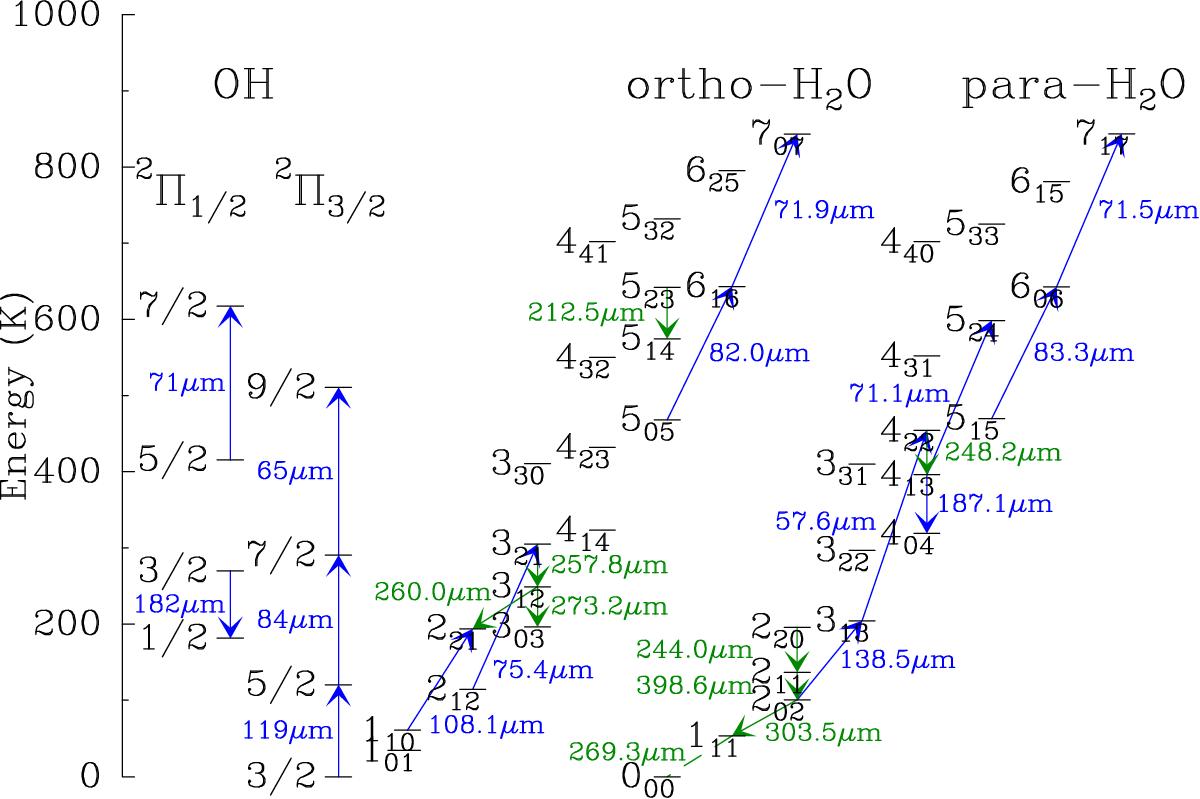

Energy diagram for H2O and OH. Transitions detected with PACS and SPIRE are indicated with solid blue and green arrows, respectively. The undetected H2O 269μm 111 → 000 transition is indicated with a dashed green line. Upward and downward arrows indicate absorption and emission lines, respectively.
