Fig. 8

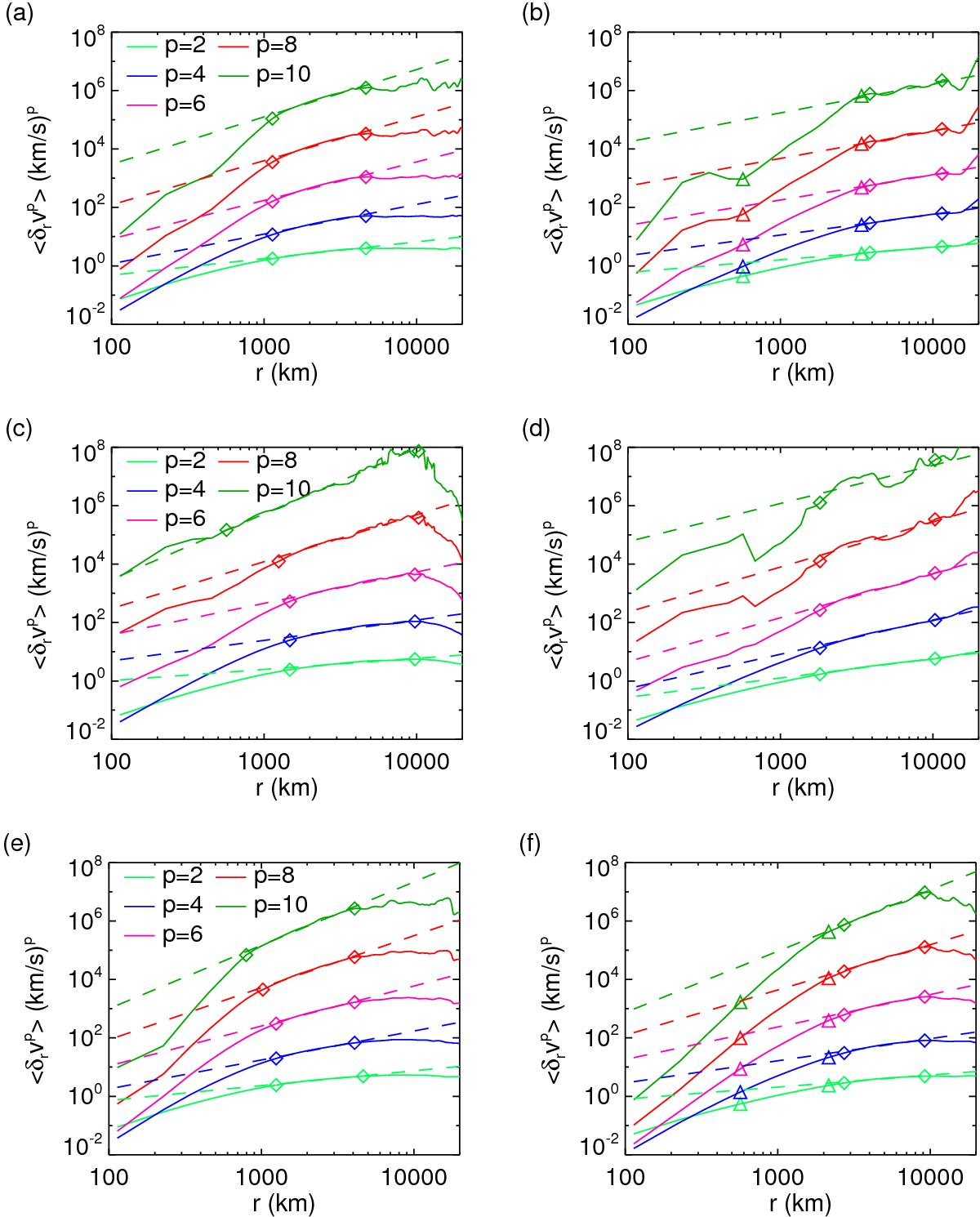

Even order structure functions between p = 2 and p = 10 for the three regions of the prominence as shown from top to bottom: in panels a) and b) R1, in panels c) and d) R2 and in panels e) and f) R3 from Fig. 4. The left and right panels give the structure functions calculated from the horizontal and vertical separations respectively. The triangles and diamonds mark the ranges over which the exponent of the power law are calculated.

This figure is made of several images, please see below:
