Fig. 11

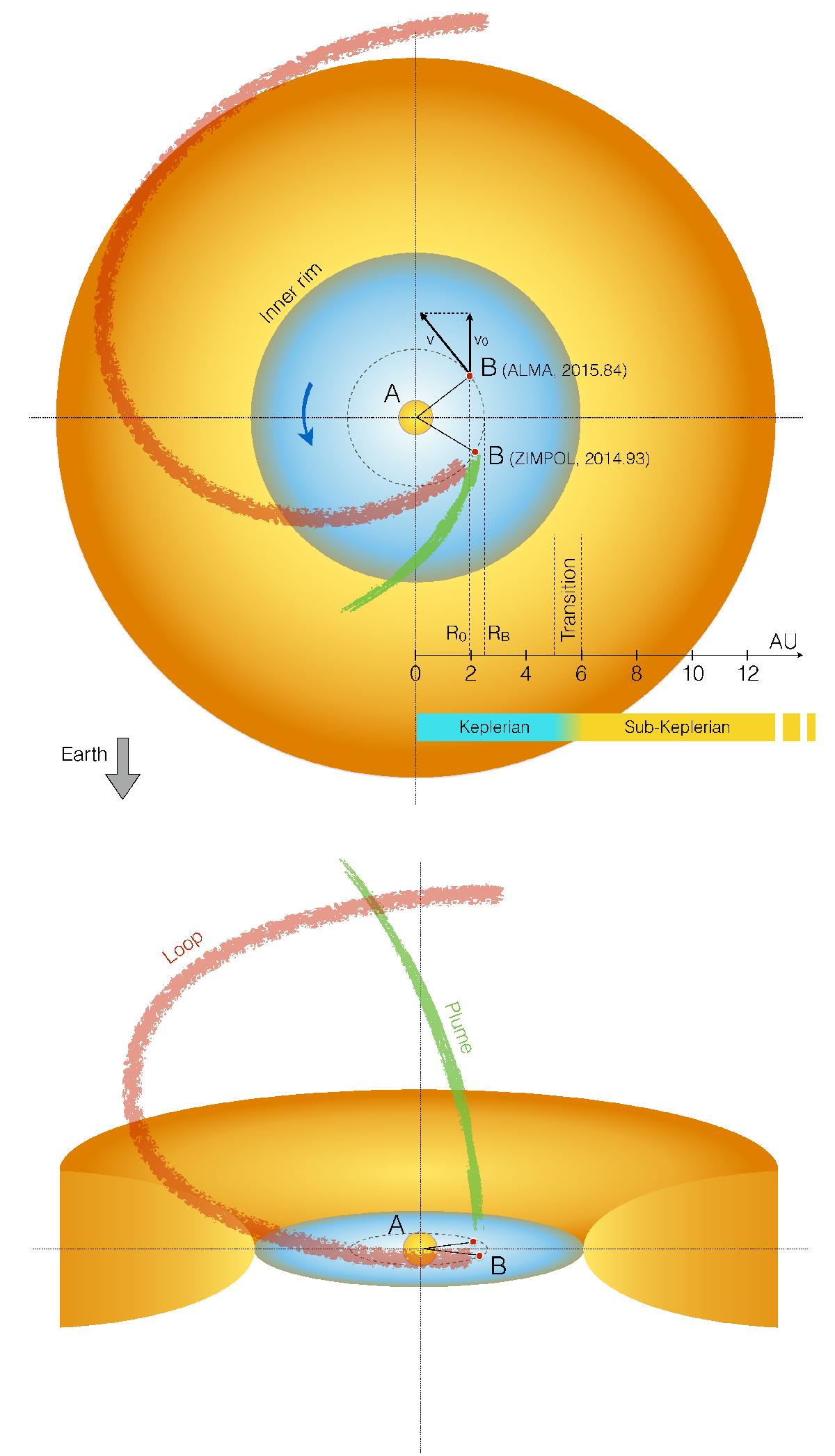

Schematic view of the environment of L2 Pup as seen from the north pole of the disk (upper panel) and close to the its plane (bottom panel). The dust component is shown in yellow-orange, and the median plane of the inner gaseous disk is represented in blue. The position of source B is represented for the ZIMPOL and ALMA epochs. The components are shown to scale.
