Fig. A.2

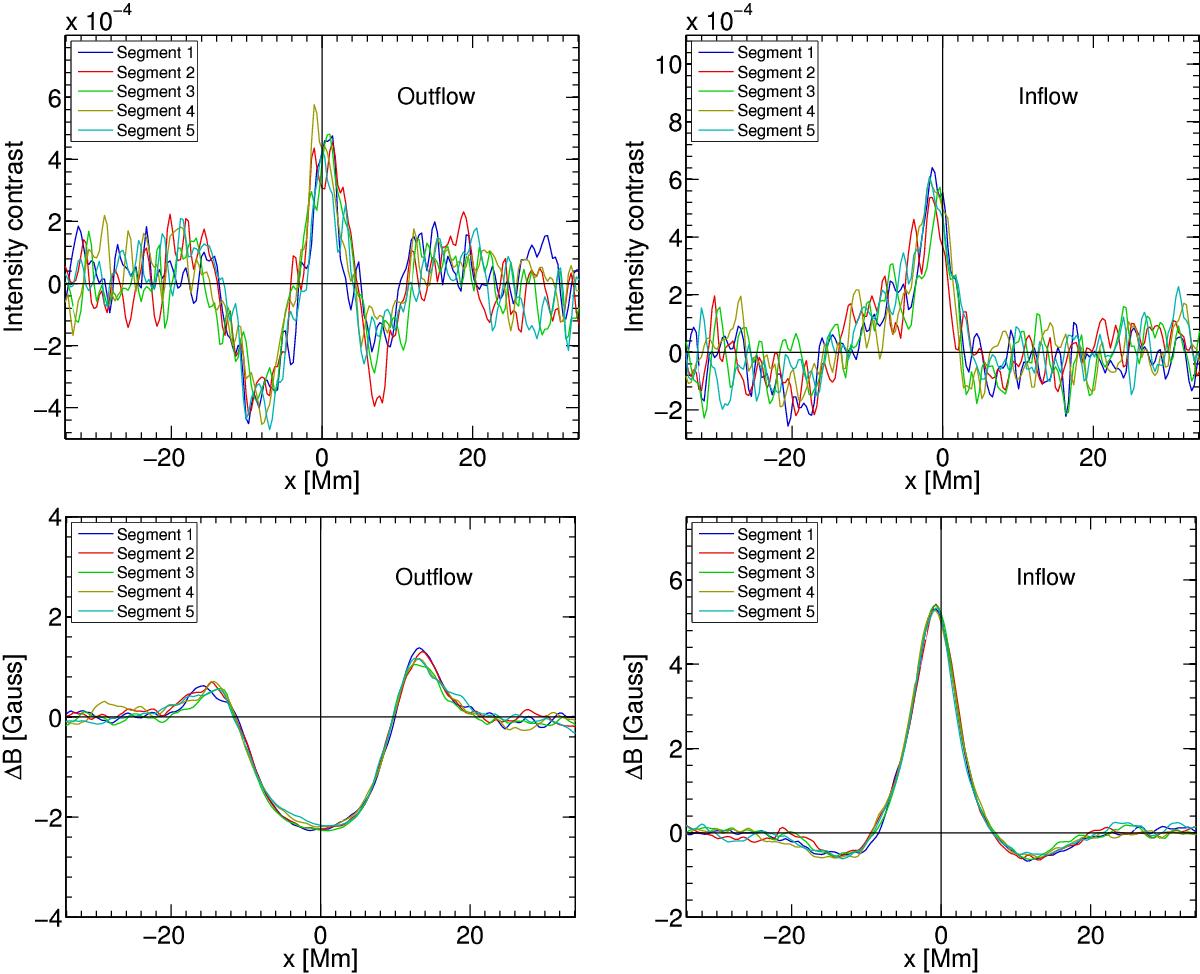

Quantities as in the bottom row of Fig. 1, but for single temporal segments. Segment 3 crosses the central meridian. For clarity, the intensity contrast and magnetic field are shown in separate panels.
This figure is made of several images, please see below:
