Fig. 3

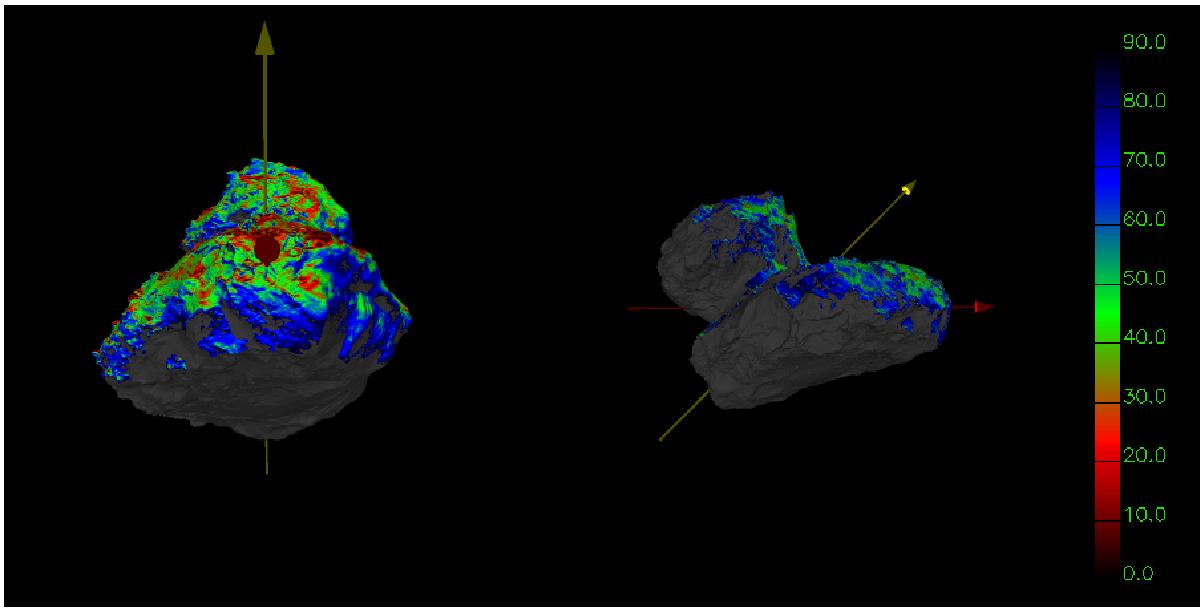

Sun incidence angle (red: 0°, blue: 90°) at the time of outburst on 12 March 2015 07:13:08. Left side: projection approximately corresponding to the image geometry, Sun upwards. The whole foot of the big lobe of the nucleus is in shadow (incidence angle >90°) including the possible jet source regions. Right side: side view, red arrow indicates direction to the observer, yellow arrow direction to the Sun.
