Fig. A.5

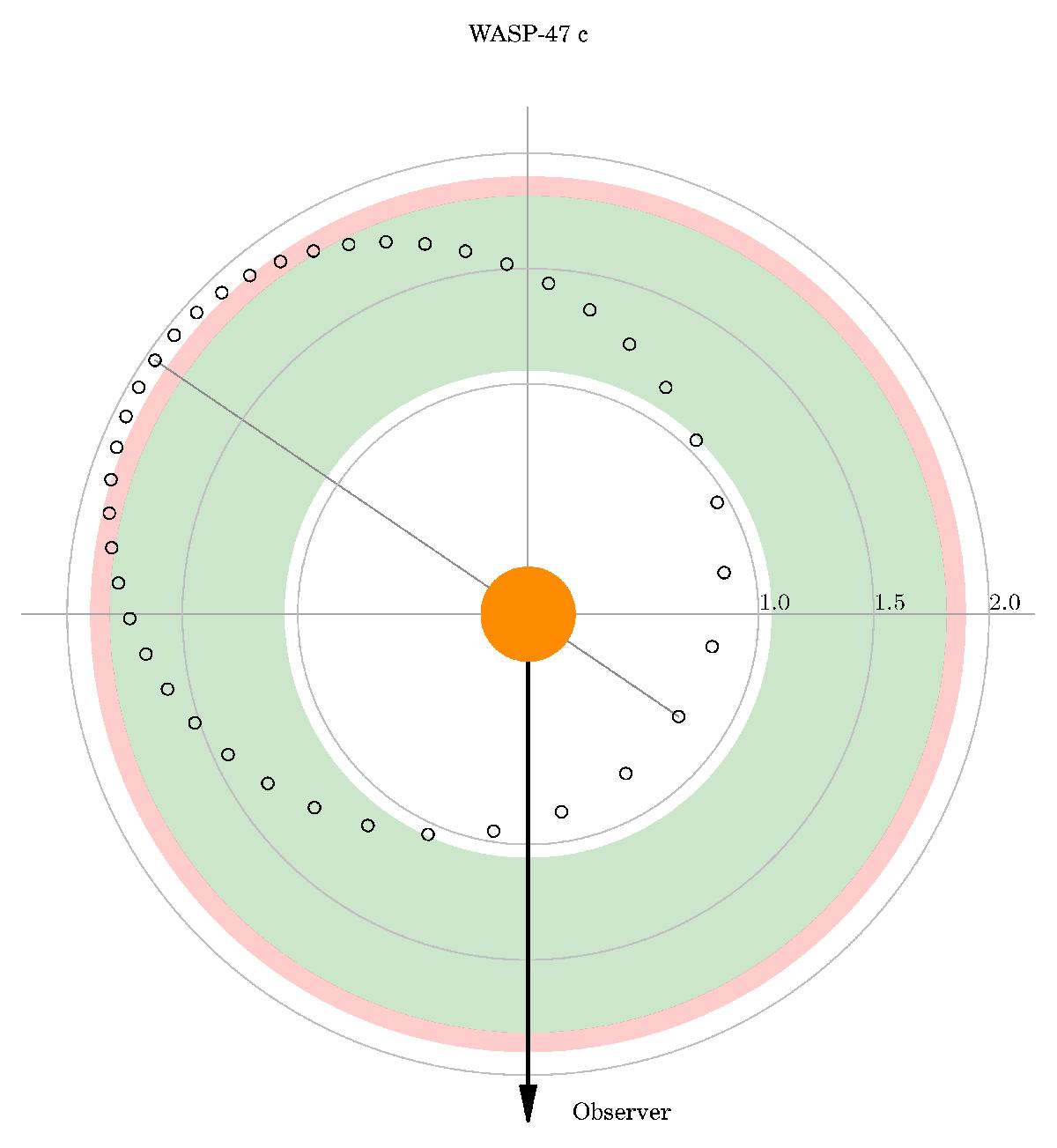

Schematic view of the orbital plane of WASP-47 c. The host star is represented by the orange circle at the centre. The maximum a posteriori orbit is indicated by the empty black points, which are equally spaced in time over the orbit. The orbital movement is counter-clockwise. The angles are measured counter-clockwise from the negative x-axis. The semi-major axis of the orbit is shown as a thin grey line, and the concentric circles are labelled in astronomical units. The black thick arrow points towards the observer. The filled green area is the habitable zone comprised between the runaway greenhouse limit and the maximum greenhouse limit, according to the model of Kopparapu et al. (2013). The red area corresponds to the increased habitable zone if the outer edge is defined by the early-Mars limit.
