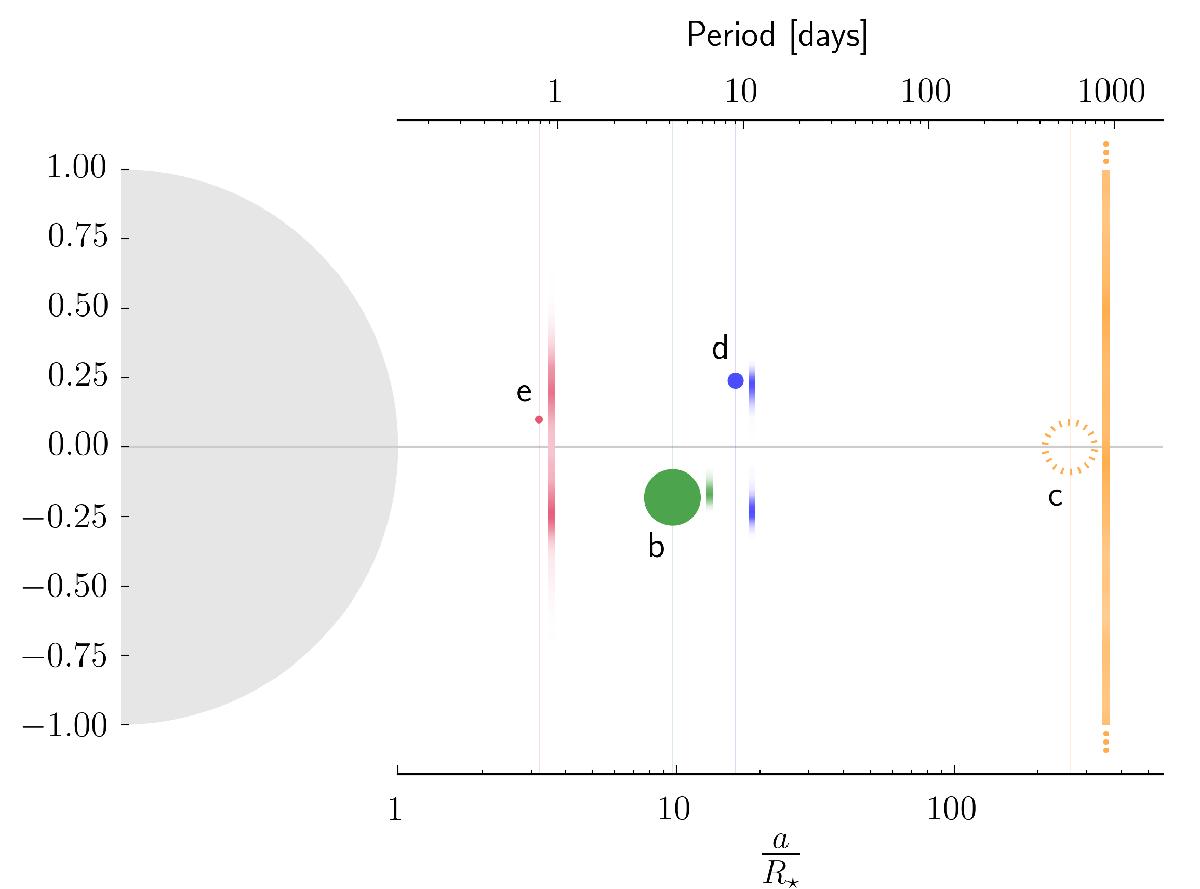

Schematic view of the WASP-47 system. The sizes of the star and the planets are to scale, and the distances from the surface of the star are in logarithmic scale. The vertical positions of the filled circles representing the planets correspond to maximum a posteriori estimates of the impact parameters, and the shaded areas (offset in the x direction for clarity) represent the corresponding posterior distributions. The distribution of the planet c is much larger and is truncated in this figure; its size is unknown.
