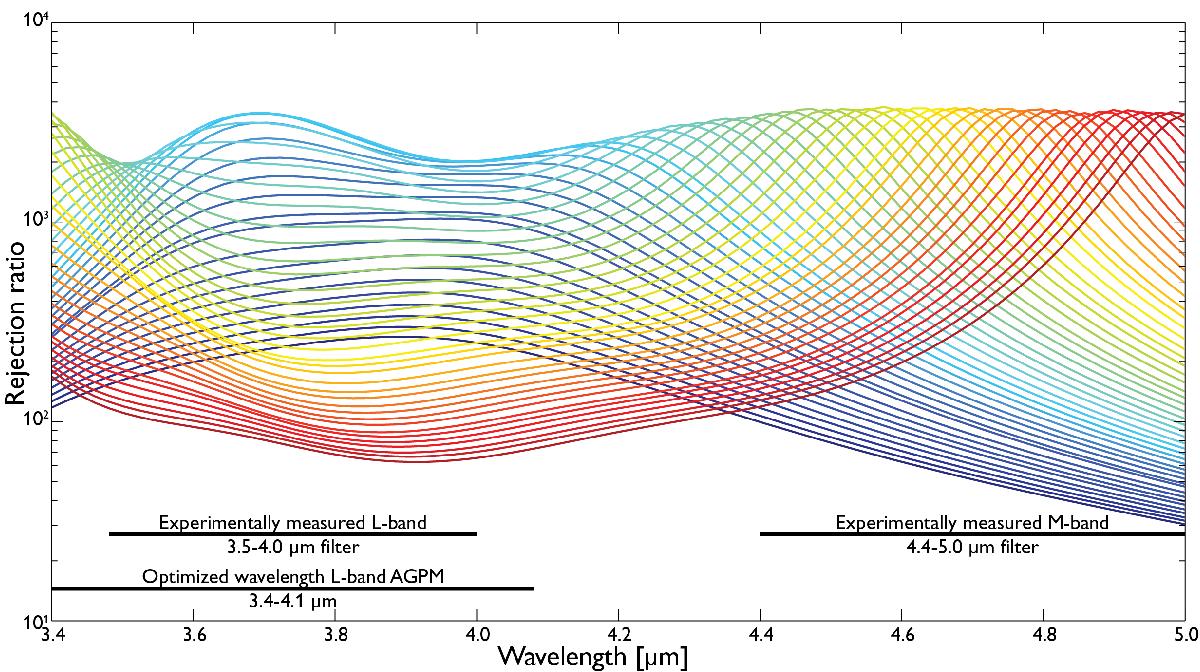

Fig. 3


Rejection ratio as a function of wavelength for different grating depths between 5.0 and 6.0 μm (from blue to red), with the lines separated by steps of 0.02 μm. The sidewall angle is set to and the line width wt is 0.70 μm.
