Fig. A.1

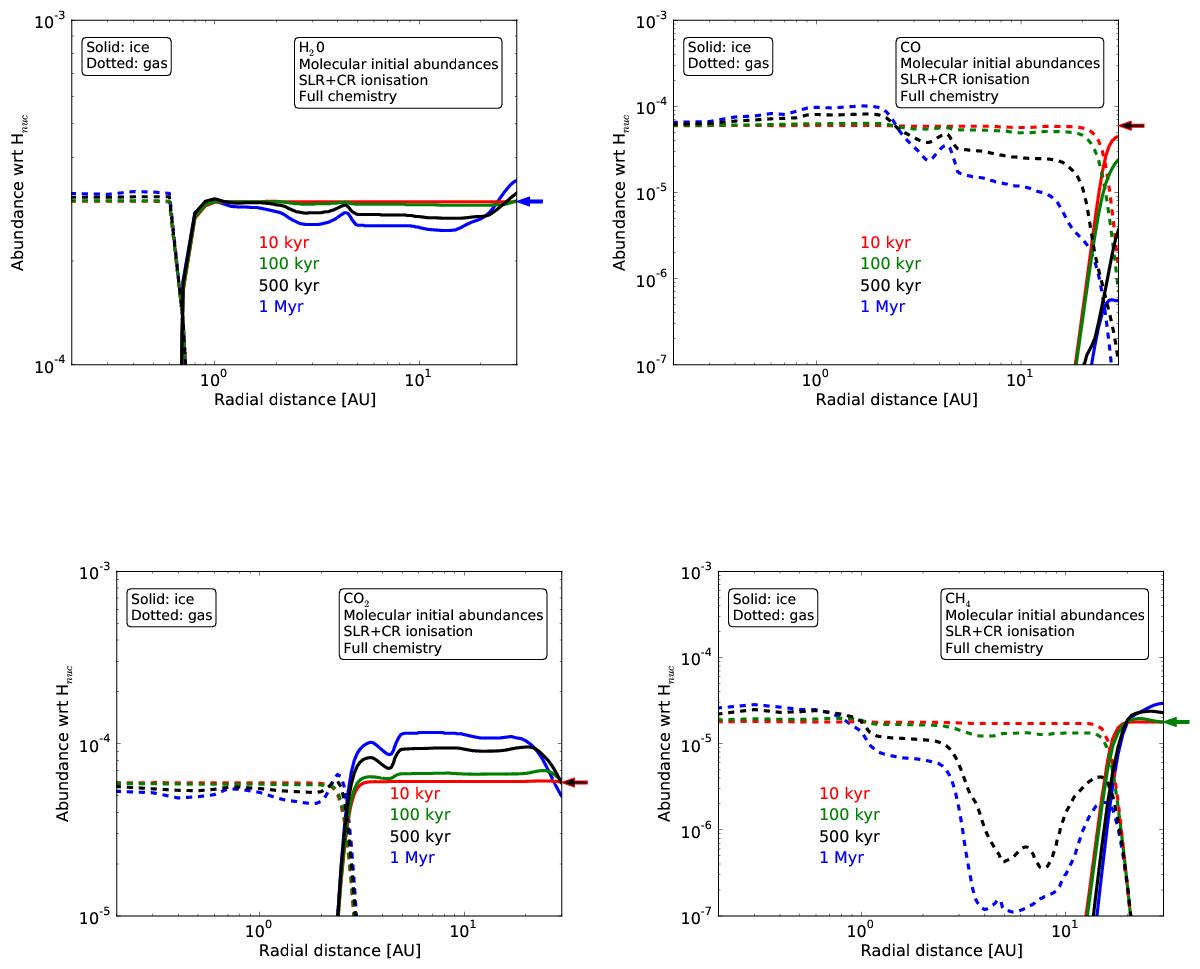

Abundances as function of radial distance R of the four key volatiles, taken at four different evolutionary stages. Note the different y-axes ranges. Arrows to the right of each panel indicate the initial abundance level in the case of the inheritance-scenario.

This figure is made of several images, please see below:
