Fig. 4

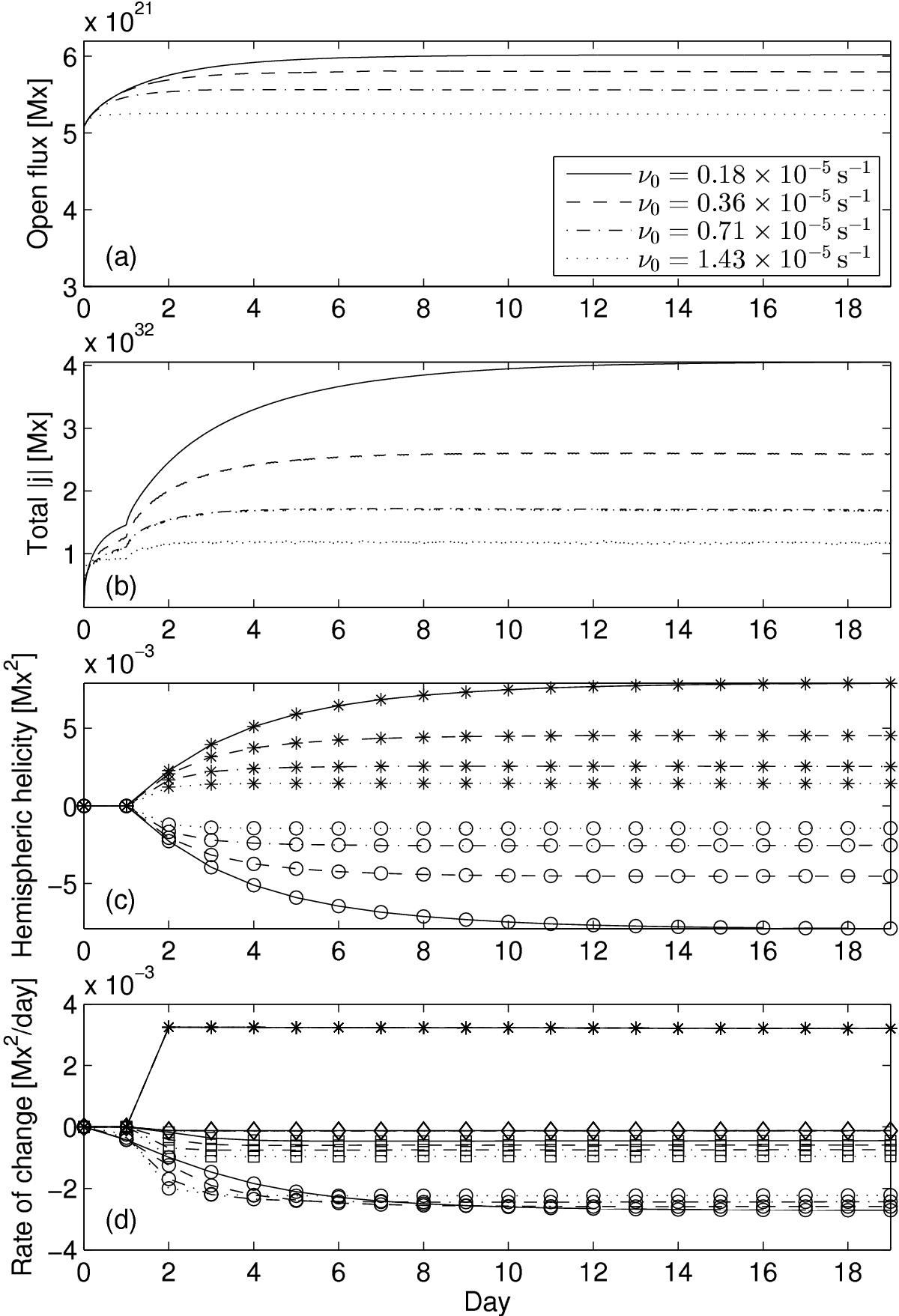

Various integrated quantities as a function of time, for the dipolar simulations with different ν0 (indicated by line styles). Panel a) shows the open magnetic flux ∫r = r1 | Br | dΩ, panel b) shows ∫D | j | dV, and panel c) shows HN (asterisks) and HS (circles). Panel d) shows the terms in Eq. (18)for the northern hemisphere, with asterisks denoting S0, circles S1, squares Seq, and diamonds SV.
