Fig. 7

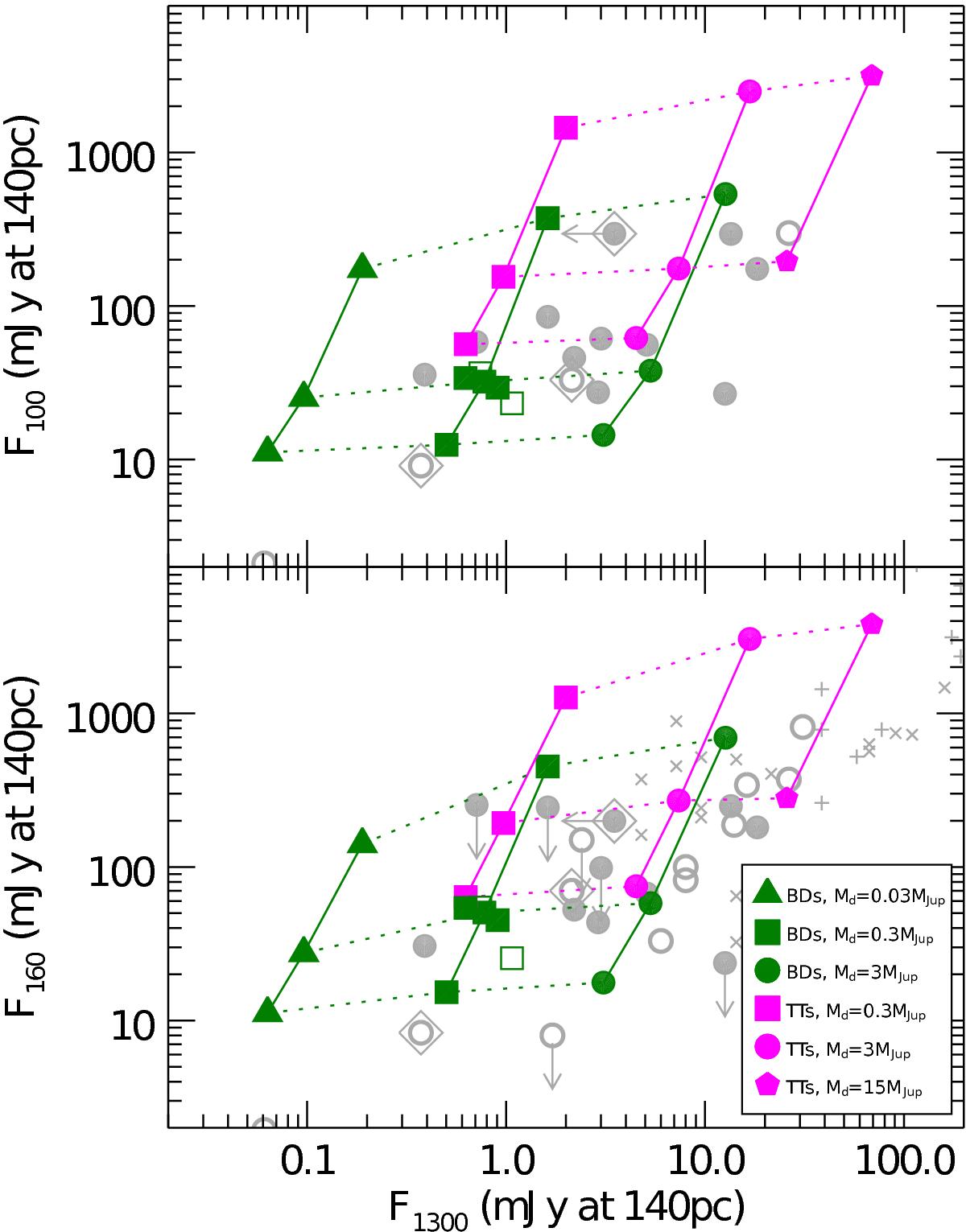

Model-predicted 100 μm (top panel) and 160 μm fluxes (bottom) vs. 1300 μm flux. Each colored point represents a model. Green symbols indicate the BD models, magenta symbols the TTS models. Different symbols refer to different disk masses: triangles for Md = 3 × 10-5M, squares for Md = 3 × 10-4M, dots for Md= 3 × 10-3M, pentagons for Md= 1.5 × 10-2M. Models for the same Md and different flares are connected by solid lines; flatter disks have lower fluxes at both wavelengths. Models with the same values of Hp(R0) and ξ are connected by dashed lines. Models mod2b, mod2b, small and mod2b,large are all shown with filled squares. Models mod2b1 and mod2b2, characterized by different grain opacity, are shown by empty squares, models with larger grains have larger mm flux and smaller FIR fluxes. For easy comparison, symbols from Fig. 3 are included in gray.
