Fig. 29

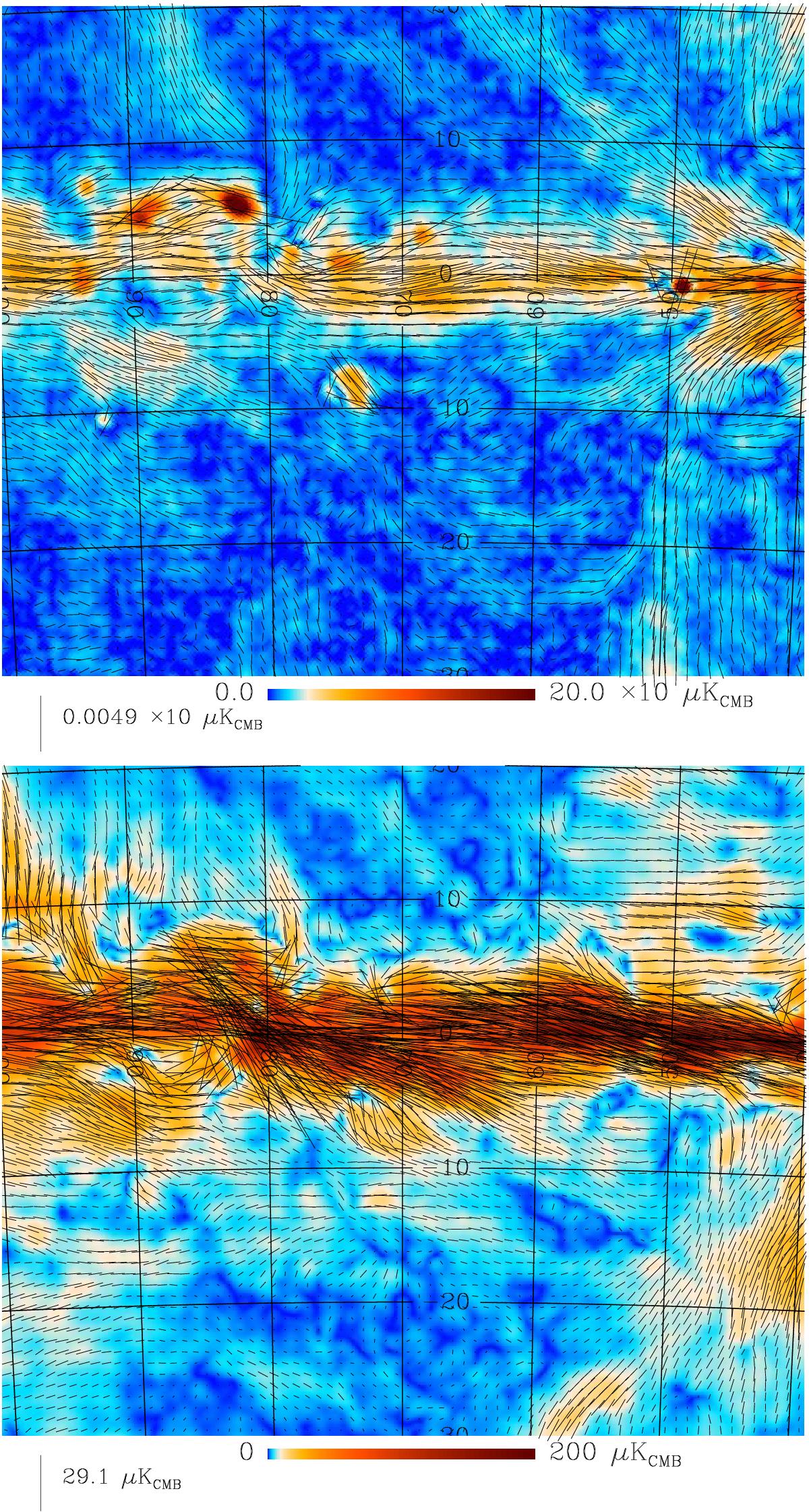

Top: combined polarization map with magnetic field vectors overlaid, centred on showing several polarized arches south of the plane. Bright compact features along the plane are all SNRs: DA 530 (G93.3+6.9); HB 21 (G89.2+4.7); W 63 (G82.2+5.3); CTB 87 (G74.9+1.2); the Cygnus Loop (G74.08.5); CTB 80 (G69.0+2.7); and W 51C (G49.10.6). The large spur at l ≈ 50° is the SPS. Bottom: dust polarization in the same region as seen at 353 GHz. Maps are rectangular projections and have an asinh colour scale.

This figure is made of several images, please see below:
