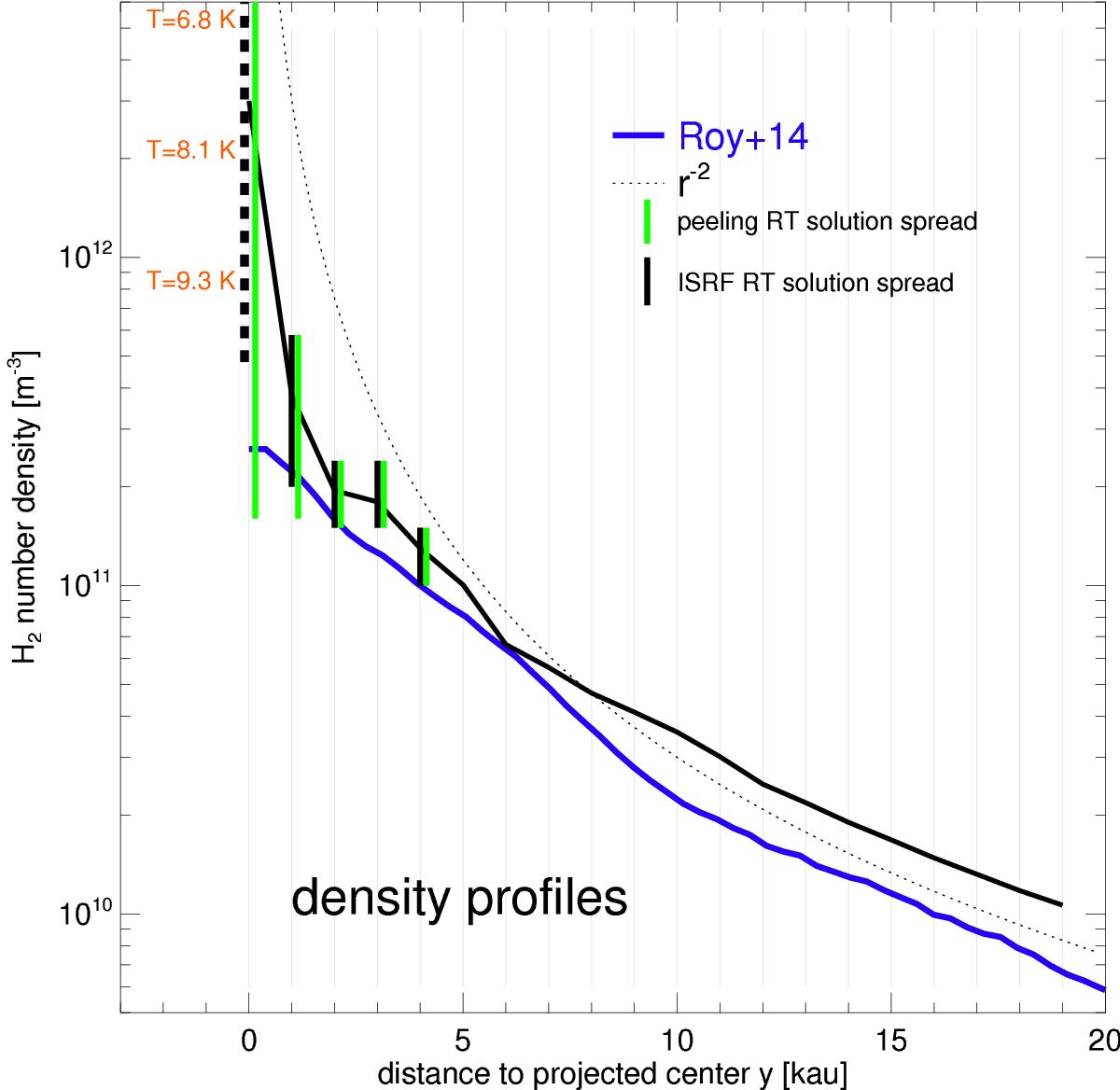

Fig. 15

H2 number density profile for L1689B (black solid). Like the profile from R+14 (blue) the outer core parts approximately follow an r-2 law but arrive at higher central densities. The remaining ambiguity in the inner cell is shown by green bars. The n-T-relation of possible inner shell solutions is marked with a dashed bar giving the corresponding temperatures.
