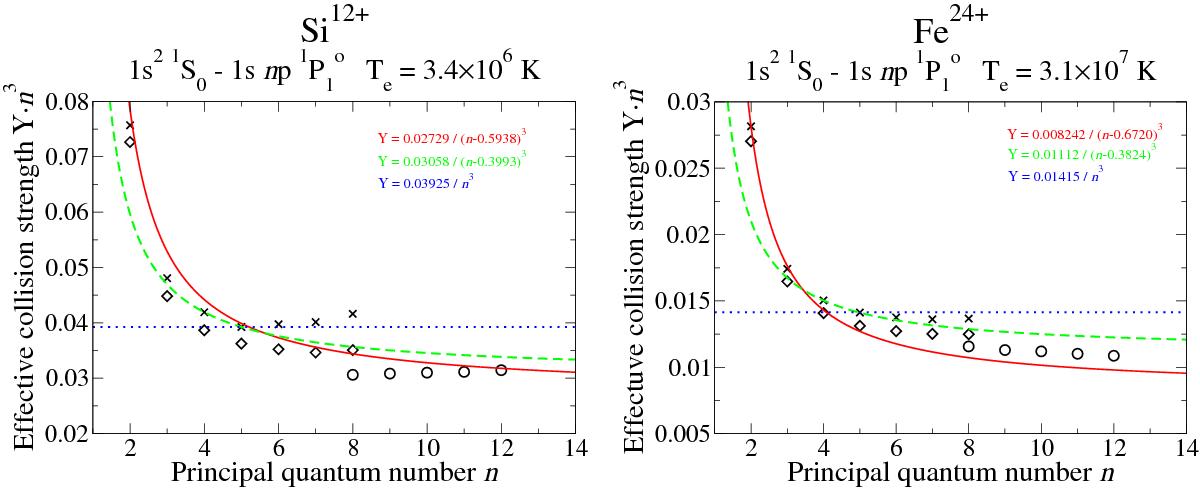

Fig. 3

Electron-impact excitation effective collision strengths (× n3) for the electric dipole transition 1s21S0 − 1snp 1P1 of the ions Si12 + and Fe24 + versus the principal quantum number n around peak abundance temperature. ×: R-matrix results; ⋄: distorted wave results with basis set n = 1 − 8; °: distorted wave results with basis set n = 8 − 12; solid line: least-squares fit using points n = 2 − 5; dashed line: extrapolation using the last two points; dotted line: extrapolation using the last point; see text.
