Fig. 3

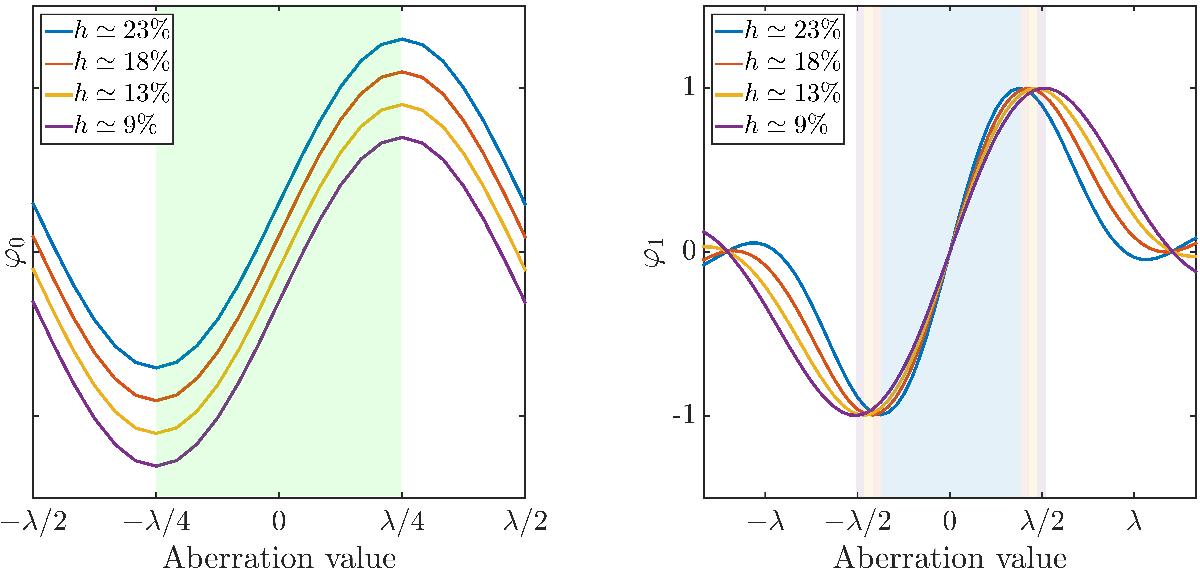

Influence of the H-zone width (h given in percentage of the segment flat-to-flat distance) on the reachable capture range when considering piston only (left) and tip only (right). For piston only, otherwise superimposed, all curves have been arbitrary shifted with different offsets in the y-axis to disentangle them.

This figure is made of several images, please see below:
