Fig. 9

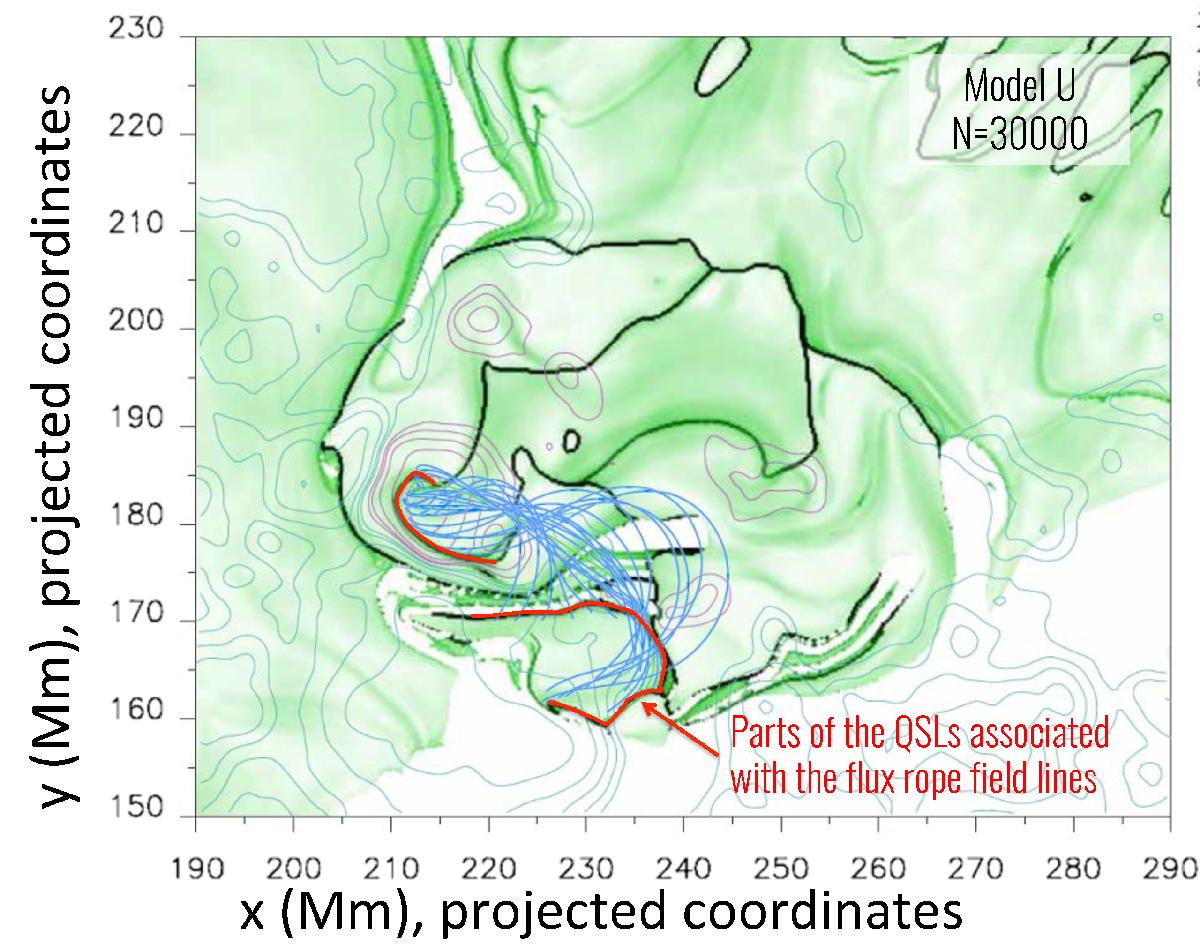

QSL map for model U at iteration time n = 30 000 showing selected field lines in blue representing the flux rope (see Fig. 6). Their footpoint mapping onto the photosphere corresponds to a certain portion of the QSLs of the entire region.
