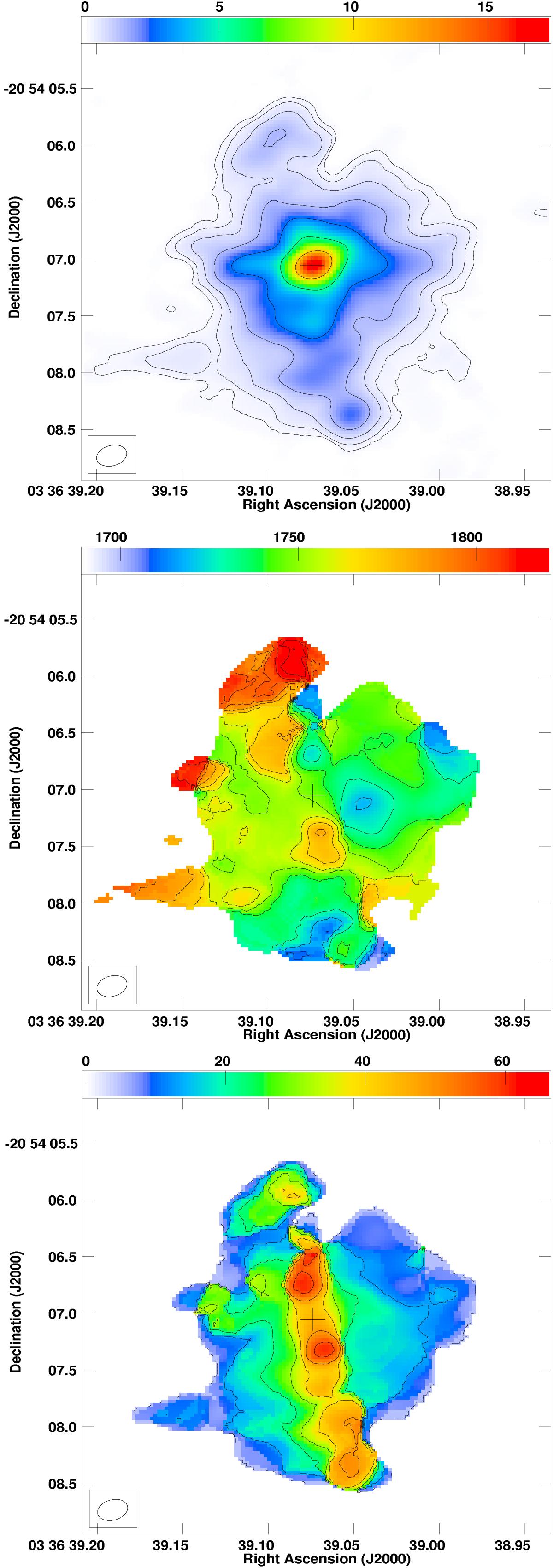

Fig. 1


CO 32 moment maps. Top: integrated intensity (mom0) where contours are 1.7 × (1, 2, 4, 8, 16, 32, 64) Jy km s-1 beam-1. Colours range from 0 to 172 Jy km s-1 beam-1. Centre: velocity field (mom1) where contours range from 1690 km s-1 to 1820 km s-1 in steps of 10 km s-1. Bottom: dispersion map (mom2) where contours are 4.4 × (1, 3, 5, 7, 9, 11, 13) km s-1. Colours range from 0 to 66 km s-1. The cross indicates the position of the 345 GHz continuum peak (see Table 1).
