Fig. 5

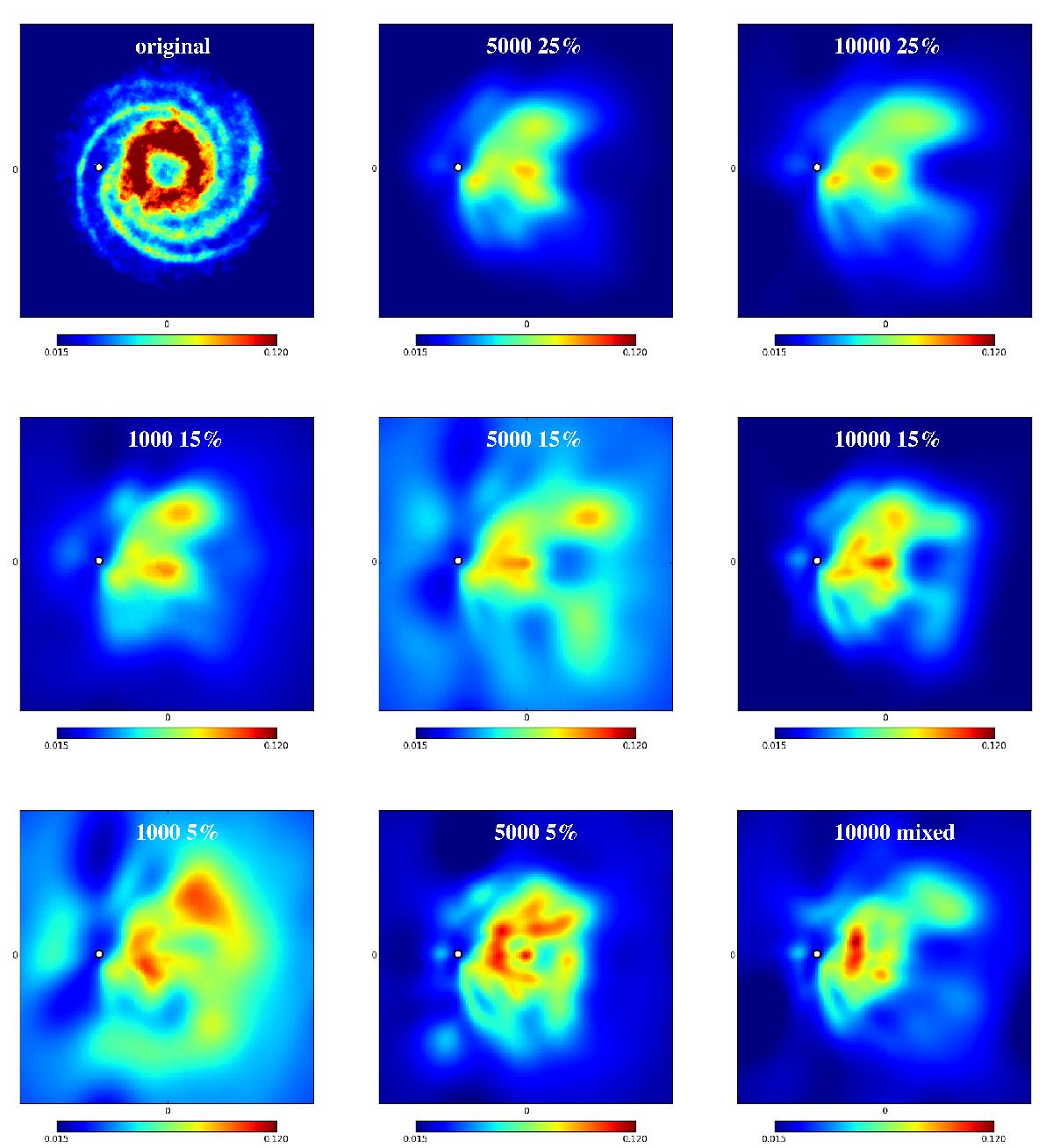

Several reconstructions of the Galaxy model with medium strength fluctuations. All panels show top-down views of the electron density in the Galactic plane using a linear color scale in units of cm-3. The panels span 36 000 pc in each dimension. The Sun is located at the white dot depicted in each panel. The rows show reconstructions with distance errors of 25%, 15%, and 5% (from top to bottom). The columns show reconstructions with 1000, 5000, and 10 000 pulsars (from left to right). The layout follows Table 1. The top left panel shows the original input model (modified NE2001). The bottom right panel shows the reconstruction of the mixed measurement set.
