Fig. 13

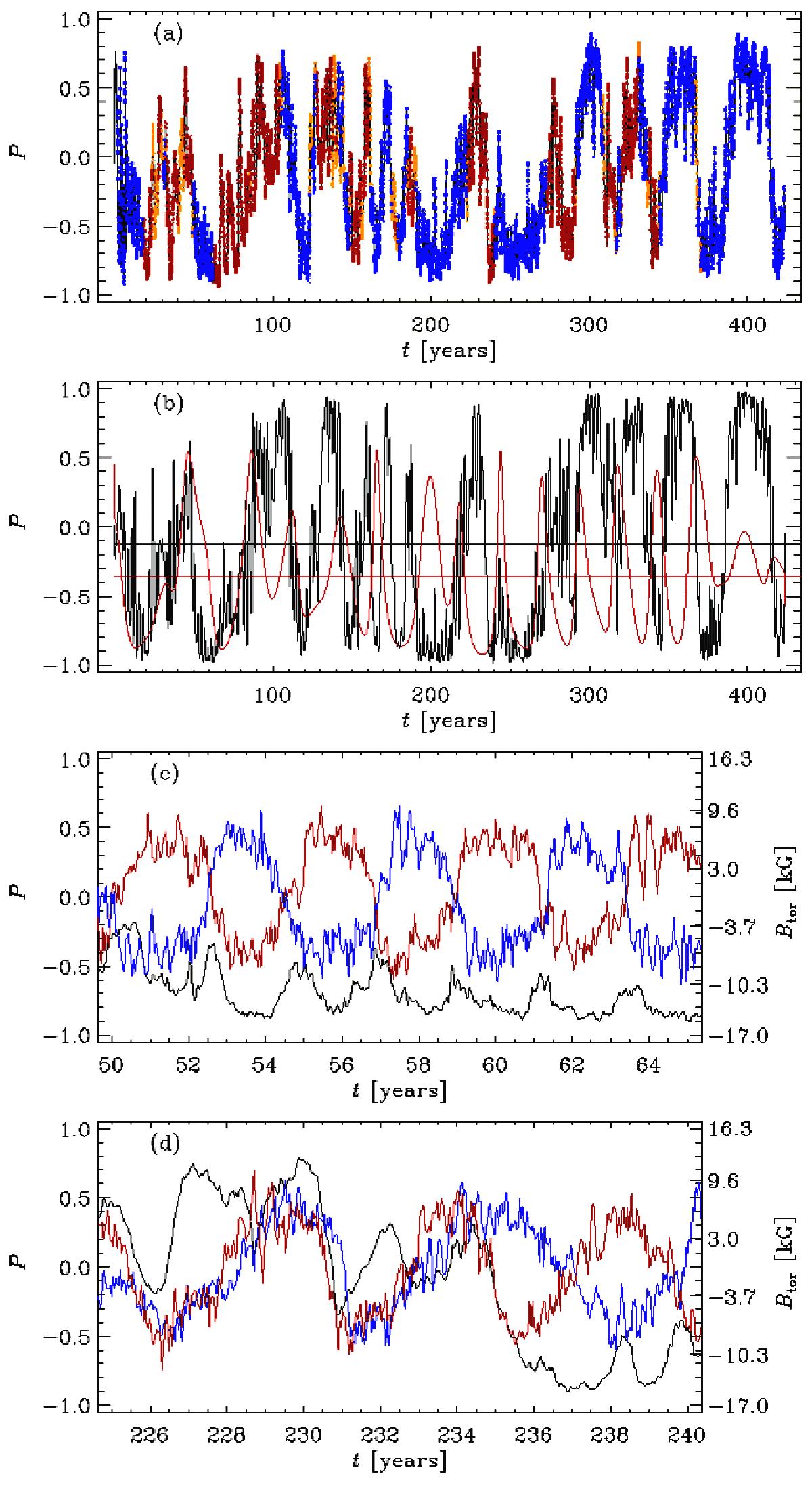

a) Parity P as function of time. The color-coding is defined using Definition D3. b) Parity of M7 (black) and M11 (red) as a function of time; their means are indicated with the horizontal lines with the same color-coding. c) Parity (black) and toroidal magnetic field near the surface (blue: north, red: south) at ± 25° latitude, during the low state of the bottom toroidal mode, panel d) shows the same quantity, but for a high state of the bottom toroidal mode.
