Fig. 12

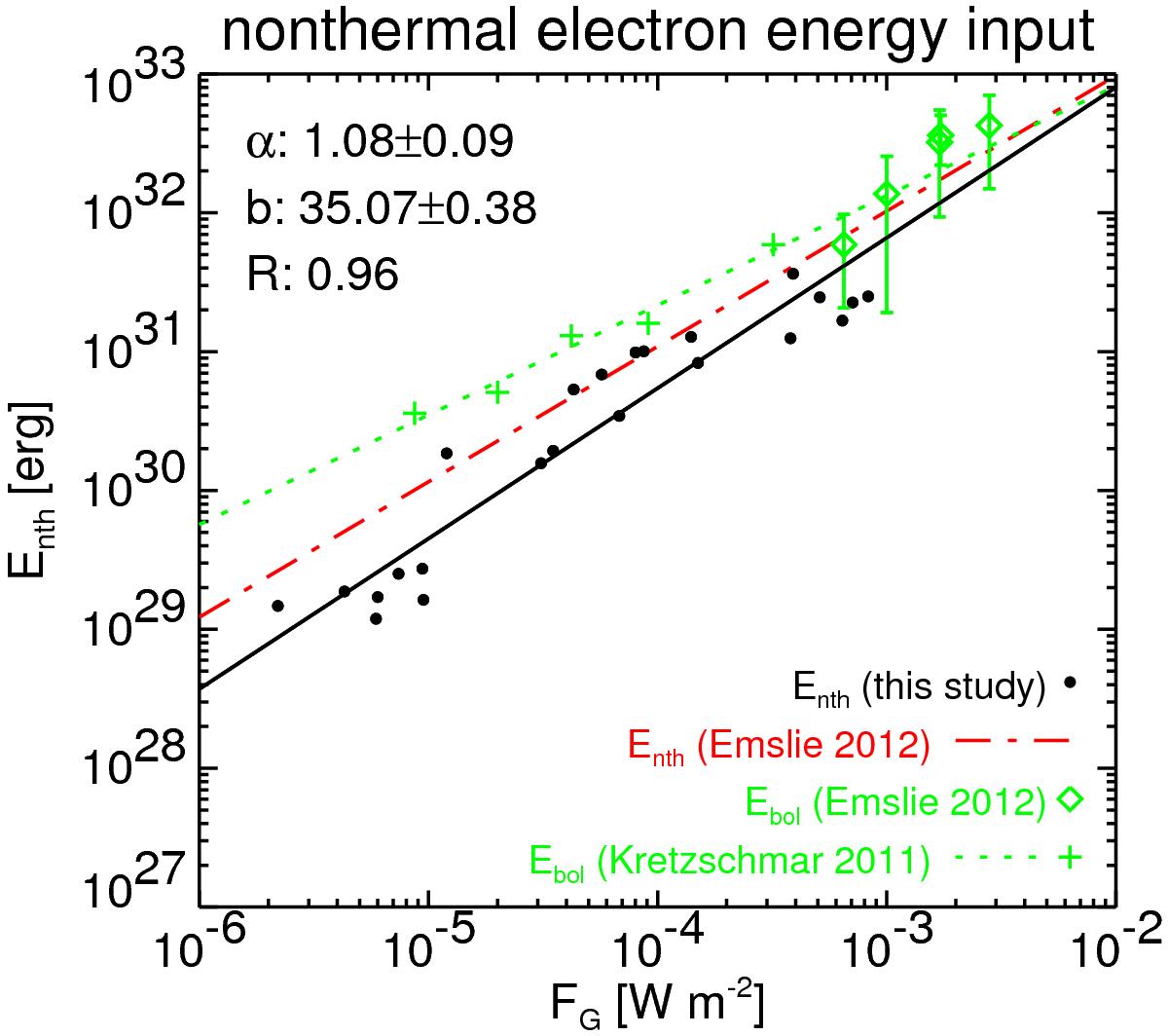

As in Fig. 9, but showing the total injected energy in nonthermal electrons, Enth (dots), as a function of peak GOES flux FG. The red dash-dotted line indicates the relation derived by Emslie et al. (2012).
