Fig. 3

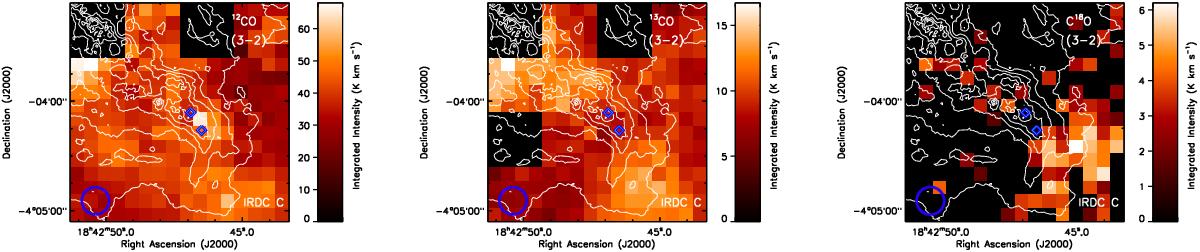

Total integrated intensities for all detected components of the 12CO (left), 13CO (centre), and C18O (right) J = 3 → 2 lines towards IRDC C by the JCMT (in color scale). The contours give the mass surface density derived by Butler & Tan (2012) and are the same as in Fig. 1. The blue diamonds give the central locations of the C1-N and C1-S cores with the top left core in the subfigures being C1-N. The blue circle shows the HPBW of the observations.

This figure is made of several images, please see below:
