Fig. 5

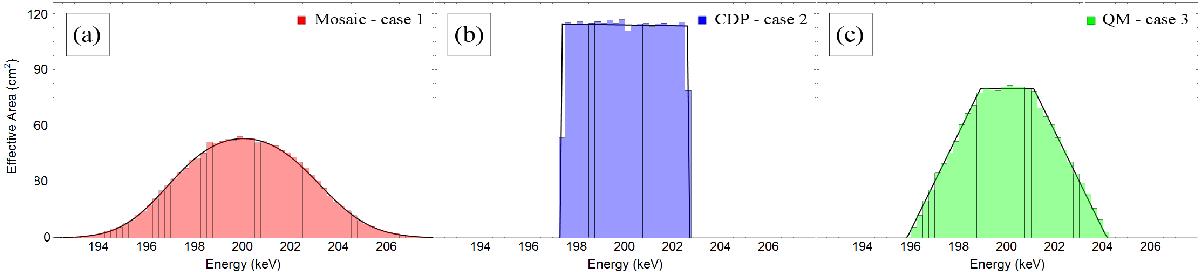

Effective area of the simulated rings. a) Case 1: mosaic crystals disposed in geometry 2. b) Case 2: CDP crystals disposed in geometry 1. c) Case 3: QM crystals disposed in geometry 2. The continuous lines represent the analytical result, while the histograms were obtained through the Monte Carlo simulation.
