Fig. 2

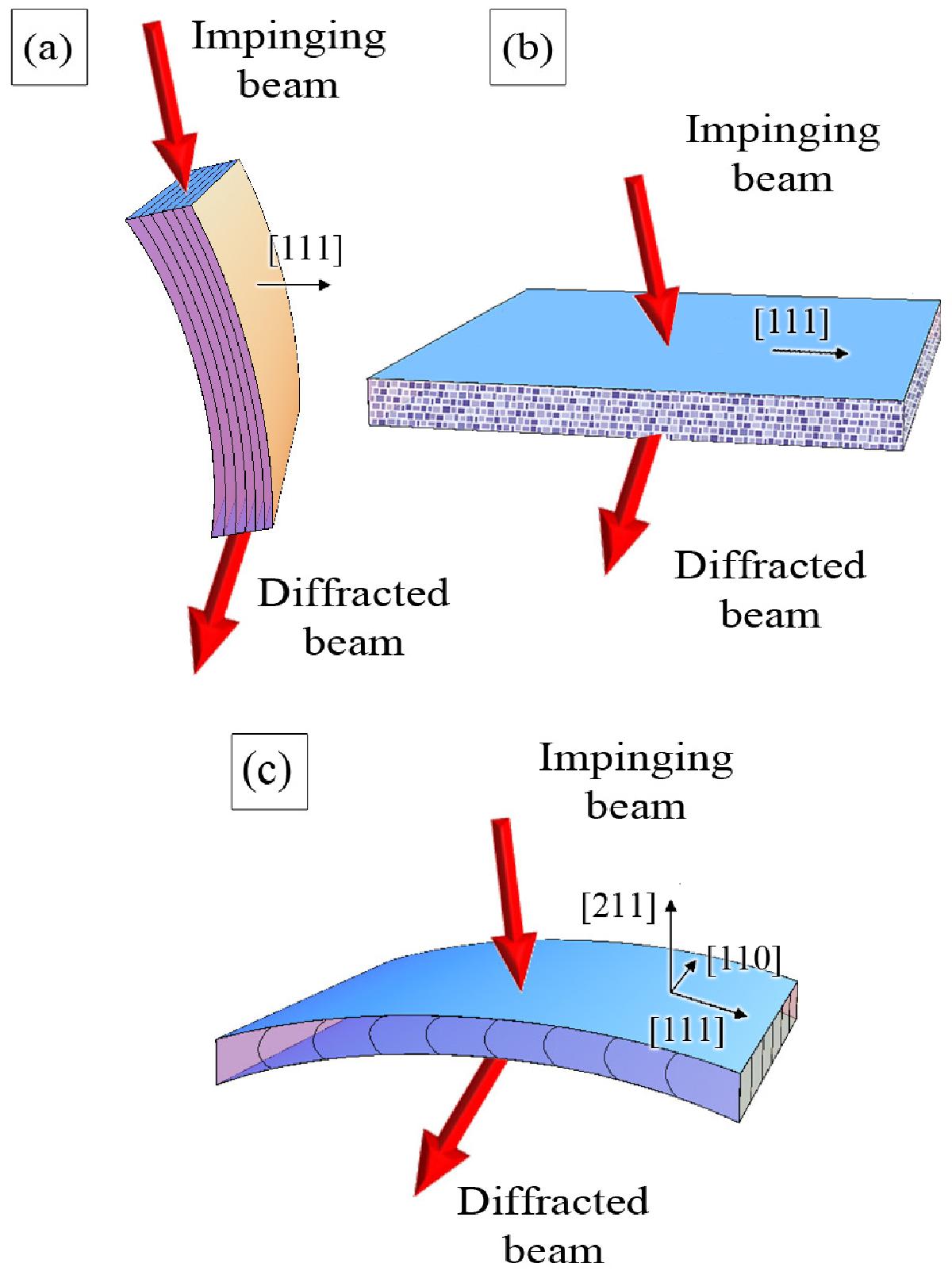

Red arrows represent an X-ray beam, while tiles represent crystals. The crystallographic orientation used in the simulation is reported. If no orientation is reported, it means that it is indifferent for diffraction; a) indicates CDP crystal, geometry 1; b) mosaic crystal, geometry 2; and c) QM crystal, geometry 2.
