Fig. 16

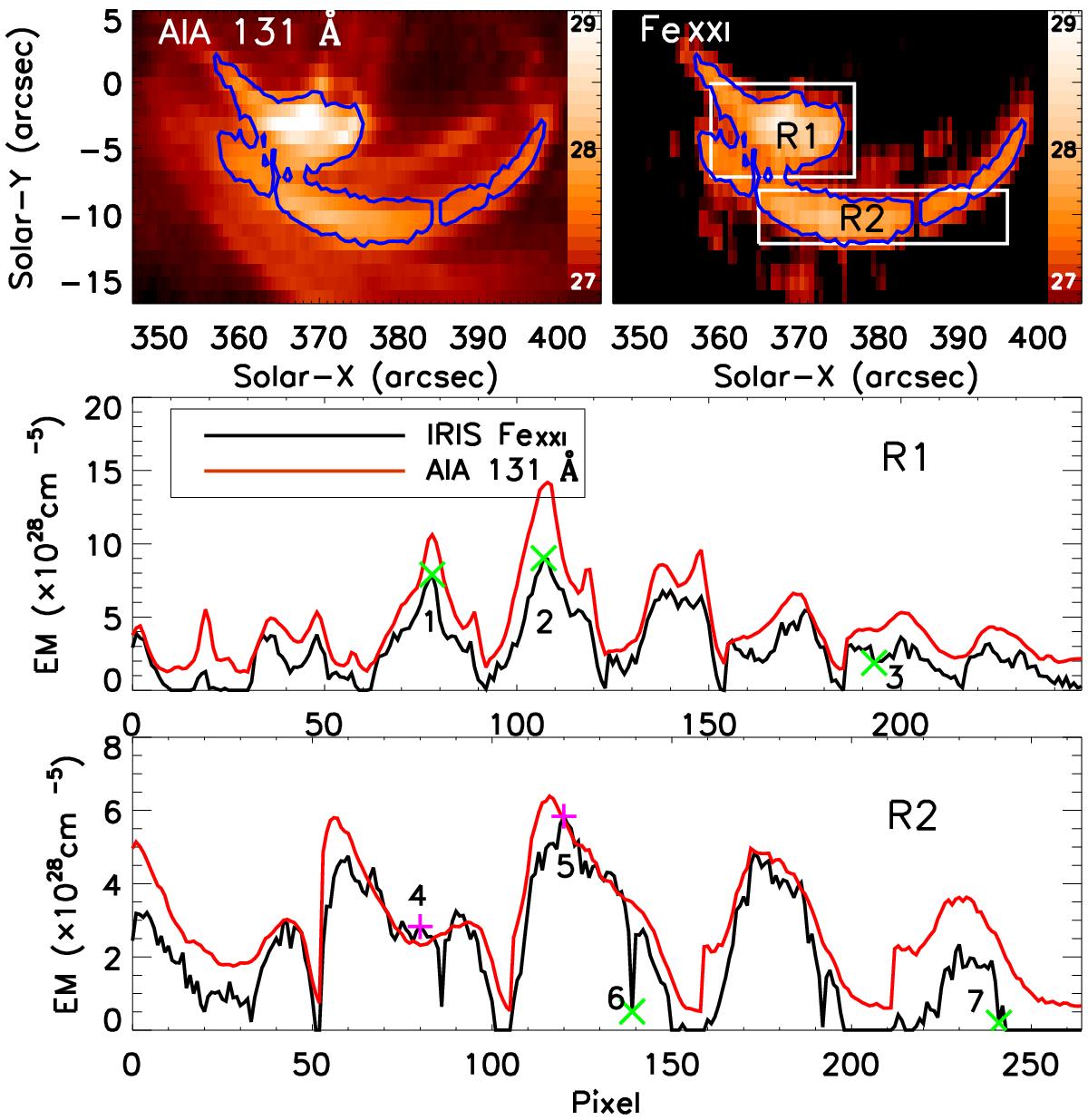

Emission measures from AIA 131 Å and IRIS Fe xxi at 11 MK for the second flare. The two white boxes are the selected regions (R1 and R2). In the lower panels, the black line is the Fe xxi EM, and the red line is the 131 Å EM. The +’s mark pixels where the Fe xxi EM is higher , and the ×’s mark selected pixels, shown in Fig. 17 with higher 131 EM.
