Fig. 8

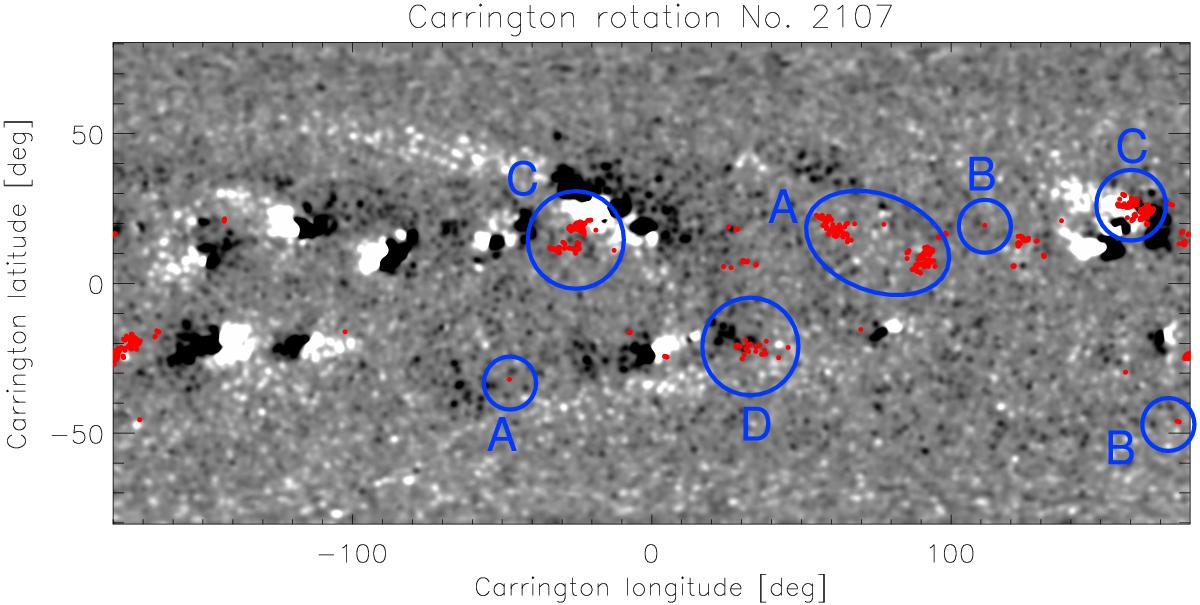

Example of a synoptic map with various locations of intermediate pores with respect to the closest bipolar active regions. A) The pores can be found in the streams of trailing polarity extending from the dispersed active regions towards poles. B) Pores located far from any obvious patch of organised polarity. C) Pores in or very close to the trailing polarity of bipolar magnetic regions (most of the pores can be found here). D) Pores in or very close to the leading polarity of bipolar magnetic regions.
