Fig. E.5

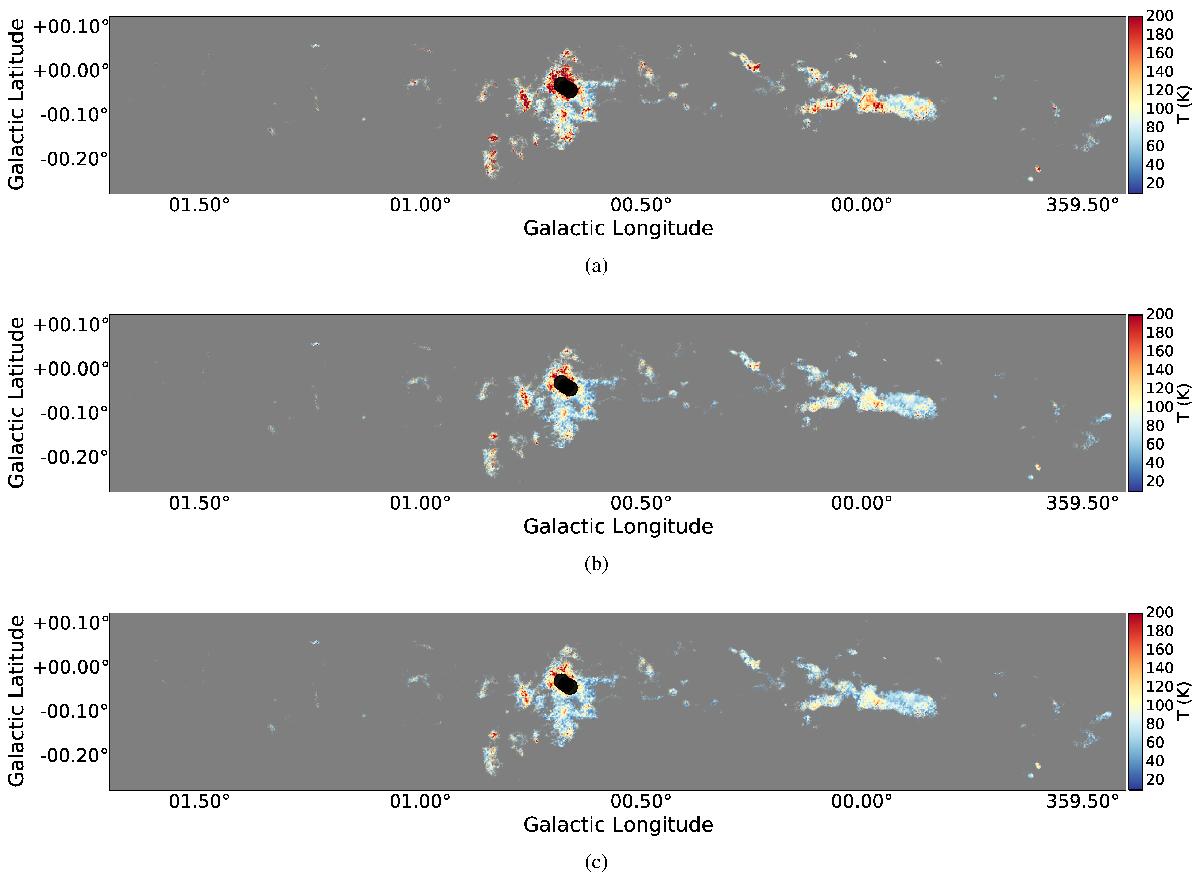

Temperature maps assuming fixed X(p - H2CO) and n(H2) = 1 × 104 cm-3. The maps are masked by signal-to-noise as in Fig. 3. The thin black contours are at a column N(H2) = 5 × 1022 cm-2 from the Herschel SED fit maps. a)X(p - H2CO) = 1 × 10-8, b) X(p - H2CO) = 1.2 × 10-9, c)X(p - H2CO) = 1 × 10-10.
This figure is made of several images, please see below:
