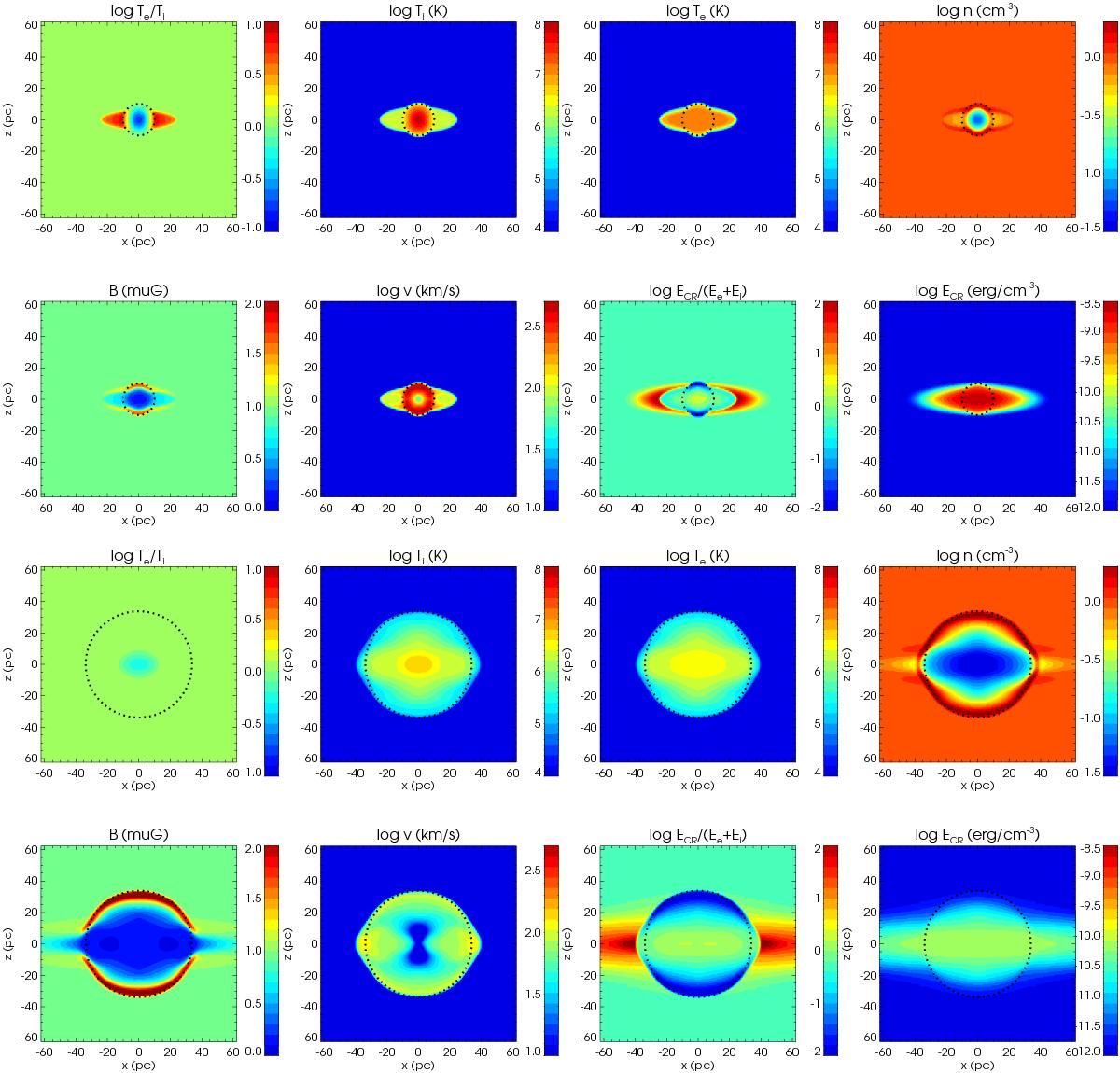

Map cuts in the xz plane for the 3D Sedov explosion including anisotropic electron heat conduction and anisotropic CR diffusion at t = 5 kyr (first two rows) and t = 100 kyr (last two rows). From left to right and top to bottom: the ratio of electron to ion temperature, the ion temperature, the electron temperature, the gas density, the magnetic field amplitude, the gas velocity amplitude, the ratio of CR to internal energy, and the CR energy density. The black dotted circles are the shock front positions of the standard Sedov solution R(t) ≃ 1.1527(E_SN/ρ)^1/5t^2/5. The explosion exhibits a nozzle-like heat/CR precursor in the horizontal direction due to the anisotropic nature of the diffusion (along the horizontal magnetic field).
