Fig. 15

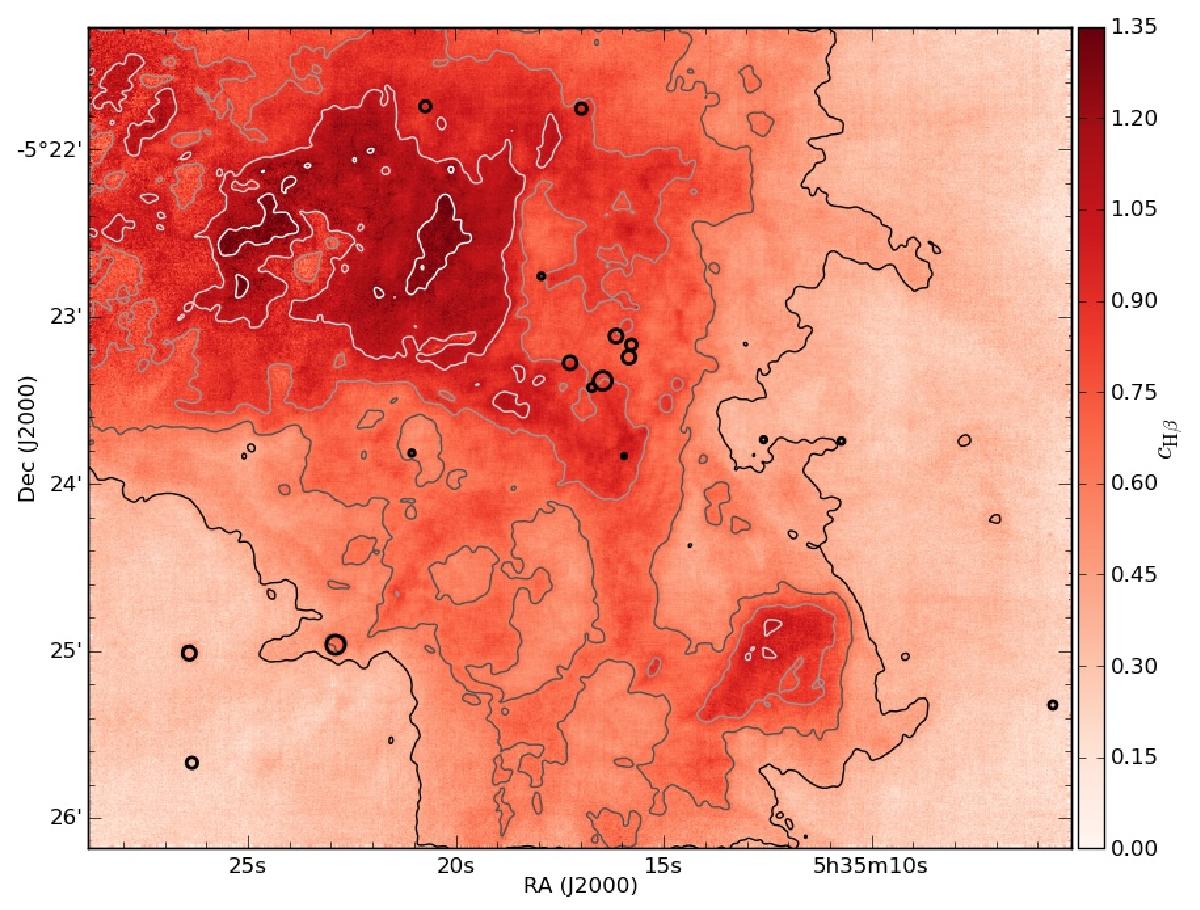

Extinction map of the central Orion Nebula, as derived from the Hα to Hβ flux ratio, displayed as cHβ. Bright stars are marked with black circles, the smoothed contours are 0.4 ≤ cHβ ≤ 1.2 in steps of 0.2.
