Fig. A.2

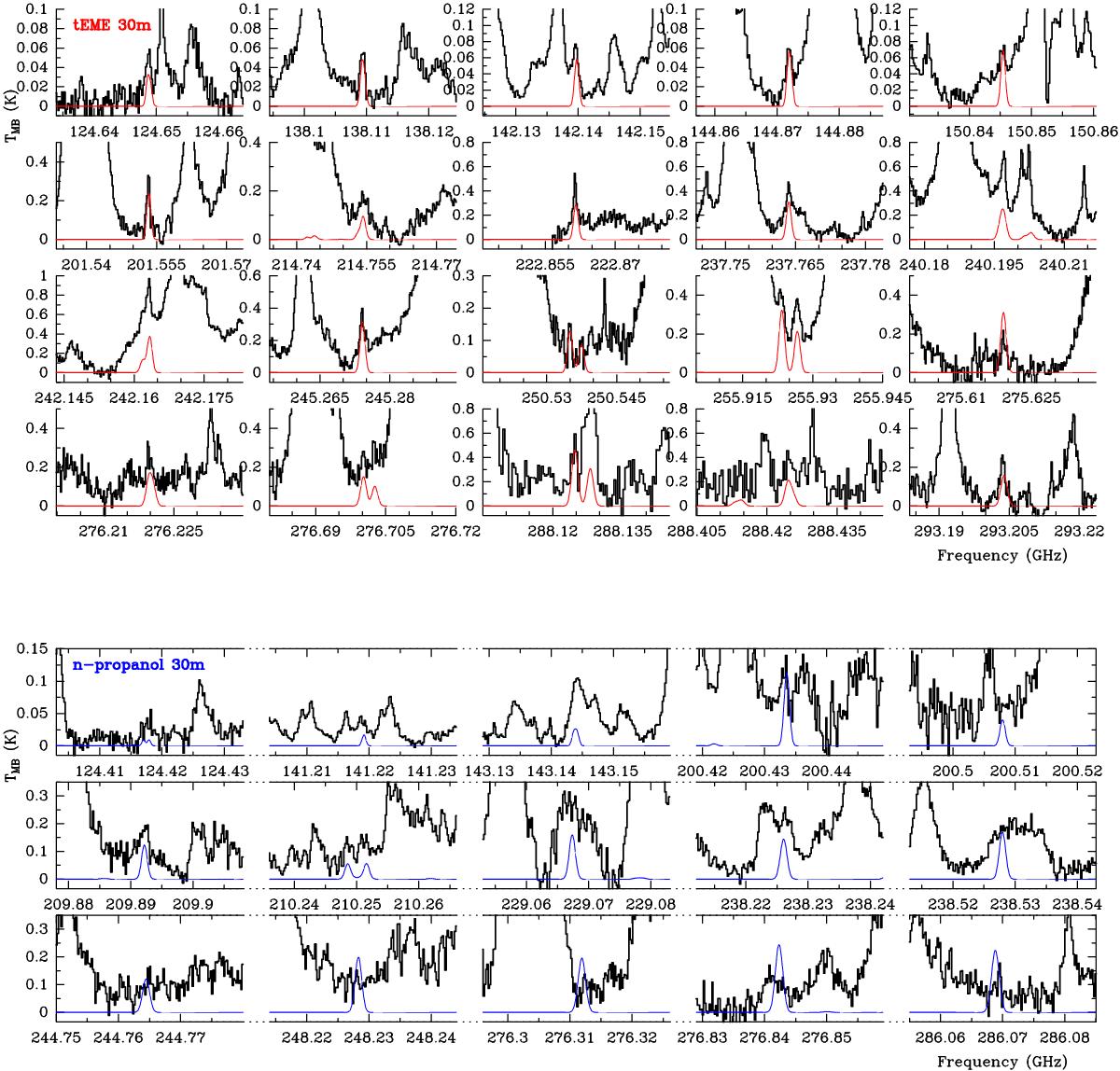

Top panel: selected lines of trans ethyl methyl ether, t-CH3CH2OCH3, towards Orion KL detected with the IRAM 30 m telescope. Data in the frequency range 124151 GHz are those of the survey position. From 201 to 293.5 GHz the data are those of the CR (see Sect. 2), where the emission peak of organic saturated O-rich species such as dimethyl ether (CH3OCH3) and methyl formate (CH3OCOH) is located (Favre et al. 2011; Brouillet et al. 2013). A vLSR of +7.5 km s-1 is assumed. Bottom panel: selected lines of gauche-trans-n-Propanol, Gt-n-CH3CH2CH2OH, towards Orion KL detected with the IRAM 30 m telescope. A vLSR of +7.5 km s-1 is assumed.
