Fig. 10

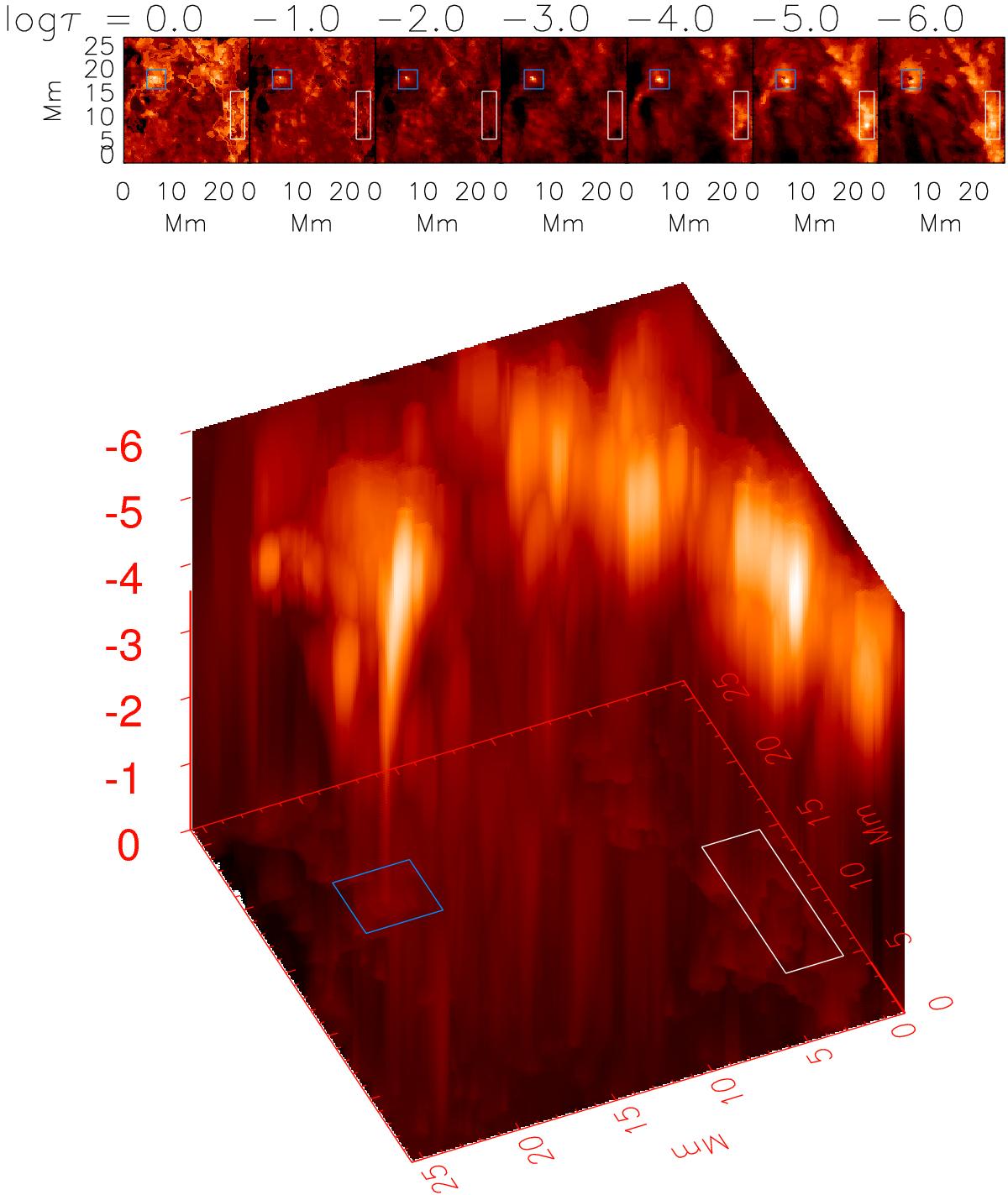

3D rendering of the EB in relative temperature (T− ⟨ TQS ⟩). The z-axis is in units of log τ500 nm. The location of the EB is indicated by a blue square. A patch of magnetic network is marked with a white rectangle. The panels at the top show maps of the temperature at a few levels in optical depth.
