Fig. 6

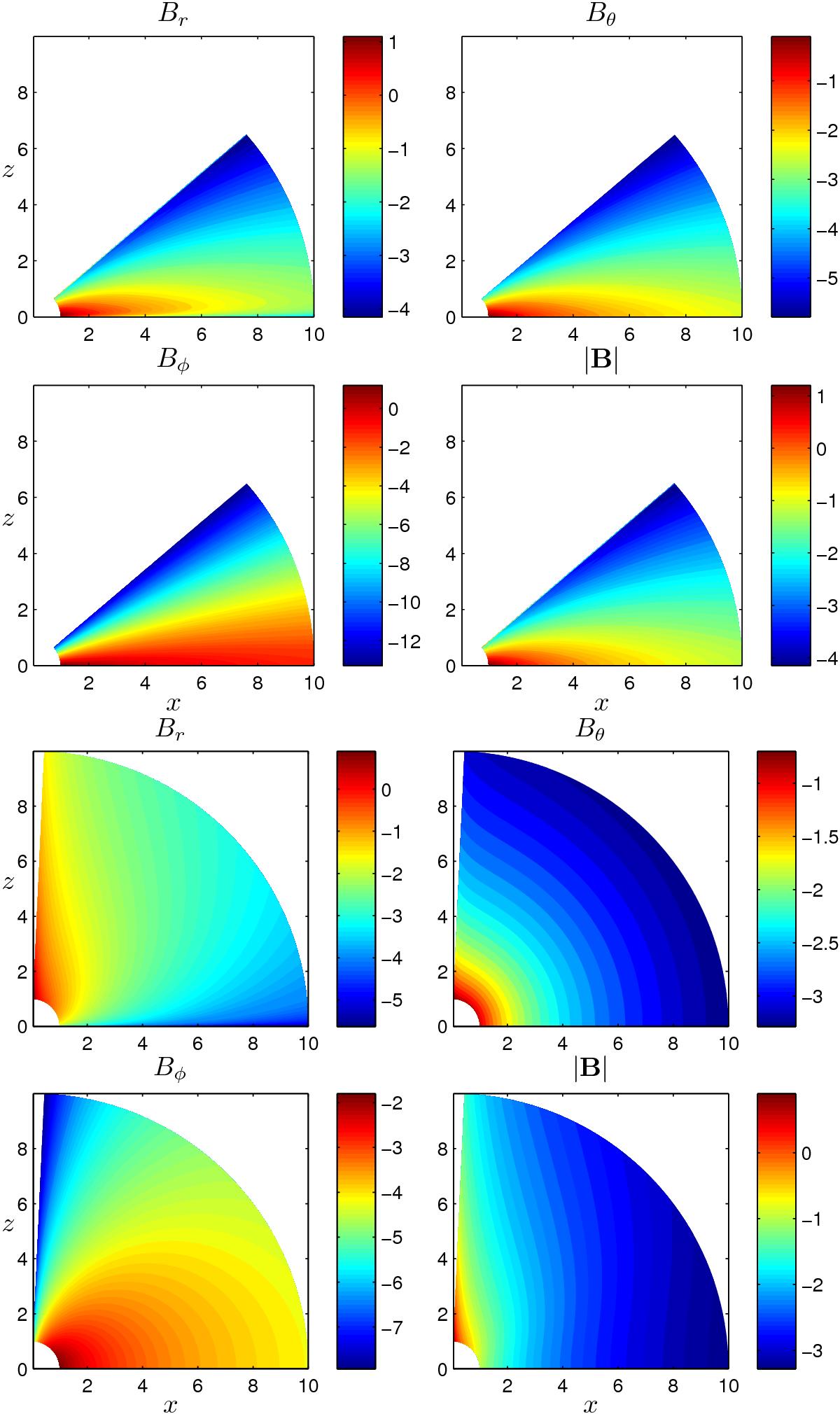

Magnetic field components based on Eq. (3)for a cut through the xz plane. Shown are the cases of n = 0.05 (upper four panels) and of n = 0.99 (lower four panels), both for w0 = w0,crit. For each case, the panels represent the magnetic field components and the total field strength, all scaled logarithmically. For n = 0.05, the solution falls toward zero rapidly so that the corresponding parts are left blank in the logarithmic plot.

This figure is made of several images, please see below:
