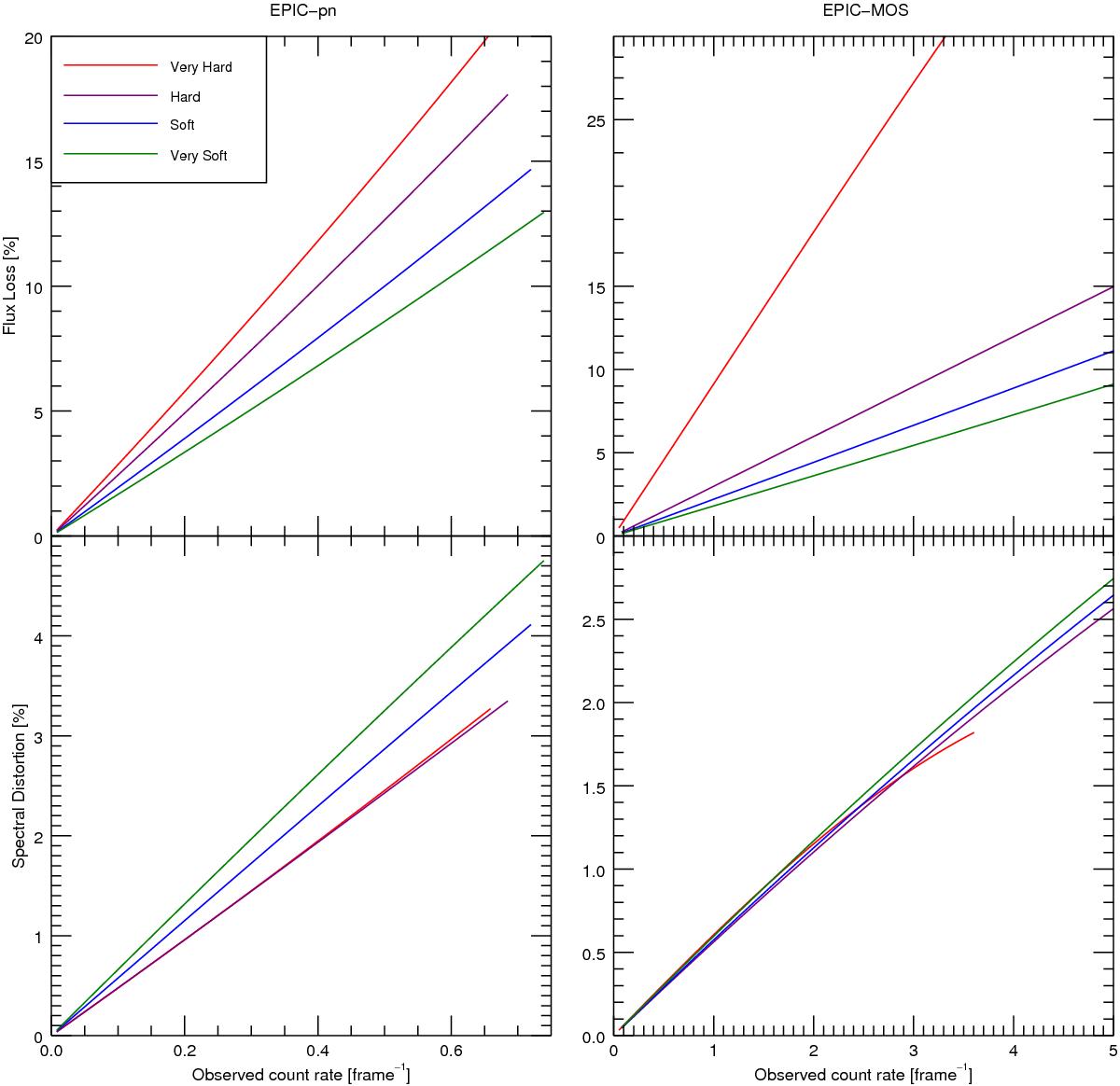

Fig. 6
As Fig. 5 but given as a function of the observed count rate of good patterns per frame, and only showing the results using the pile-up equations (excluding the simulator results for clarity). For four spectral models (shown in different colours, with flux loss increasing and spectral distortion decreasing at fixed count rate for increasing spectral hardness).
