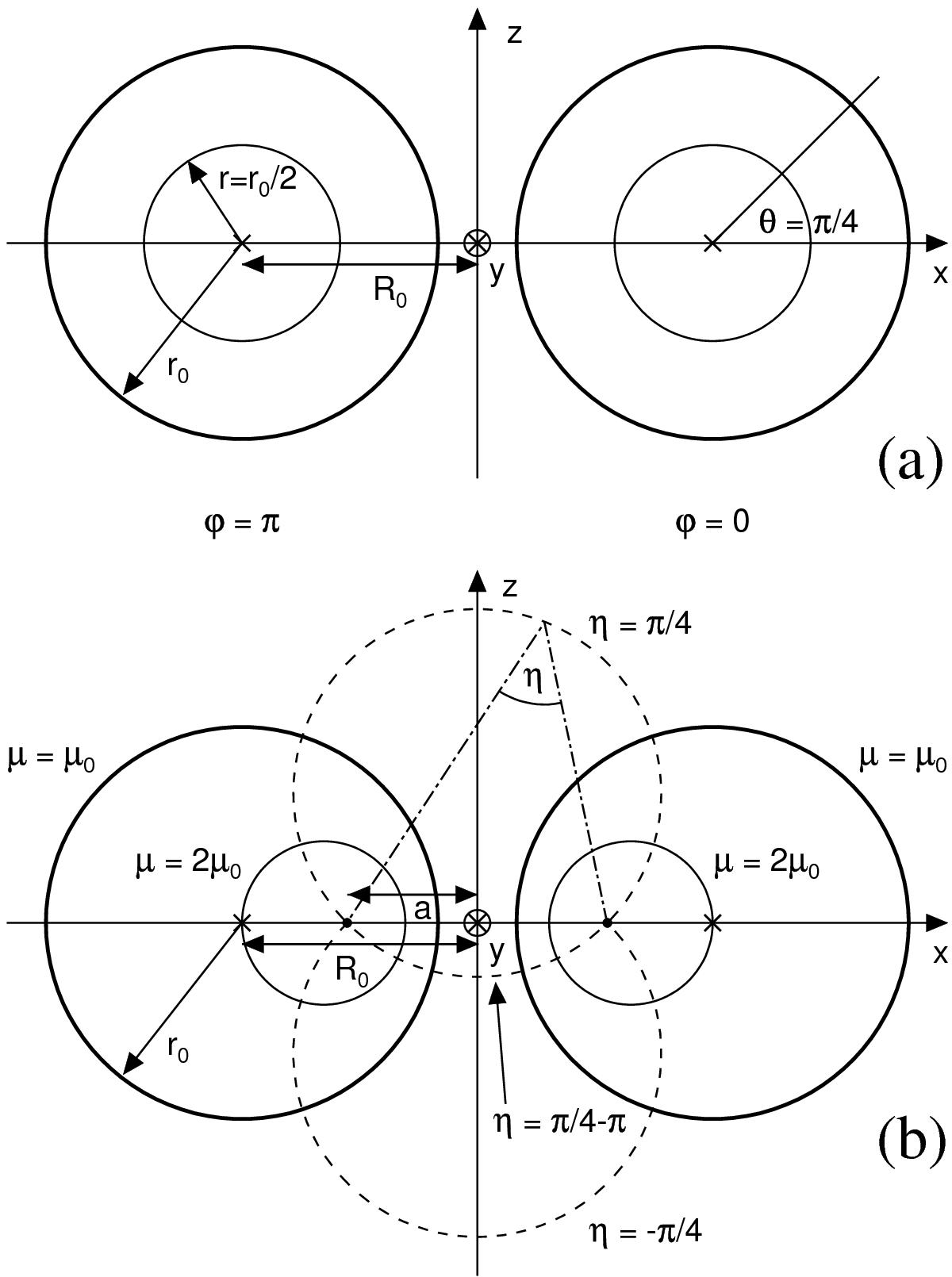

Fig. 1


Two coordinate systems shown separately in a) and b), that we used for descriptions of toroidal magnetic field configurations. Cross sections of our toroid’s surface (with major and minor radii, R0 and r0, respectively) with the xz plane are shown with the thick circles. Our toroid has a circular axis at in the z = 0 plane; cross sections of this circular axis with the xz plane indicate two symmetric crosses (outside the origin). A common coordinate of the systems is ϕ, a usual azimuthal angle in the xy plane; it is ϕ = 0 for the half-plane (x> 0)z and ϕ = π for the half-plane (x< 0)z, as labelled in the figure. a) Toroidally curved cylindrical coordinates have r and θ coordinates, in addition. The r coordinate defines toroidal surfaces, which have circular axes identical with our toroid; cross sections of one of these surfaces with the xz plane are shown with thin circles; it is r = r0/ 2. The θ coordinate is a positional angle. b) Toroidal coordinates have μ and η coordinates, in addition. The μ coordinate defines toroidal surfaces, which have co-centric, but different circular axes lying in the z = 0 plane. The circular axes tend to an asymptotic axis, which fulfills x2 + y2 = a2. Its cross sections with the xz plane are shown with two symmetric bullets at the x axis. The surface of our toroid is defined as μ = μ0, coshμ0 = R0/r0. Cross sections of a toroidal surface defined by μ = 2μ0 with the xz plane are shown with thin solid circles. The coordinate η defines spherical surfaces with centers at the z axis. Cross sections of three spherical surfaces (η = ± π/ 4/ 4 − π) with the xz plane are plotted as arcs by the dashed line. The absolute value of the coordinate η of a point is a viewing angle under which the asymptotic circular axis is seen (it is demonstrated in the figure; the viewing angle is drawn by the dotted-dashed line and its value is η = π/ 4).
