Fig. 9

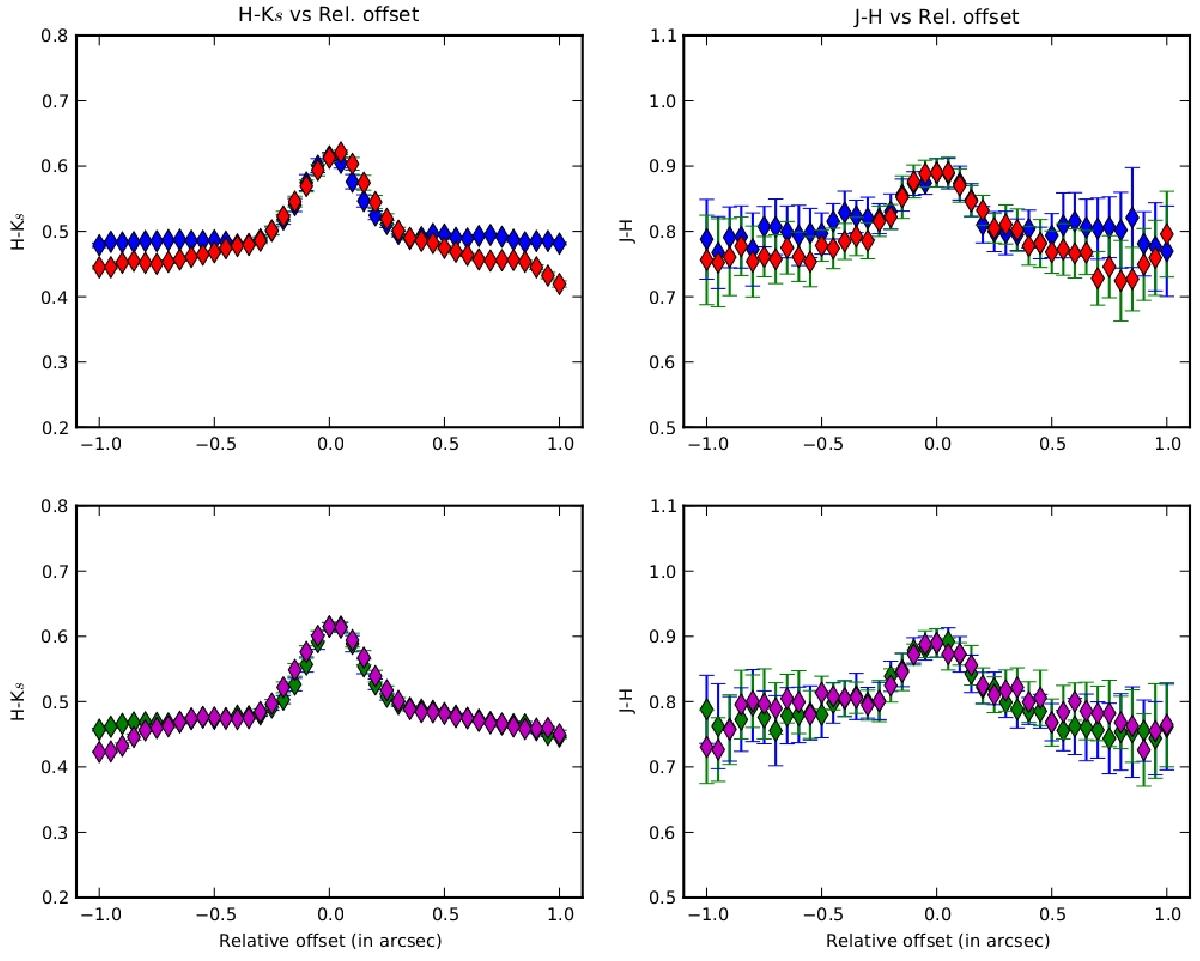

Radial profiles of the HKS (left column) and JH (right column) NIR color maps derived from two sets of perpendicular directions measured counterclockwise from the north. These are 120°/ 210° (blue/red points, respectively) in the upper row and 170°/ 260° (green/magenta points, respectively) in the lower row. Negativepositive relative offset reflects a S(E,W)N(W,E) direction.
