Fig. 1

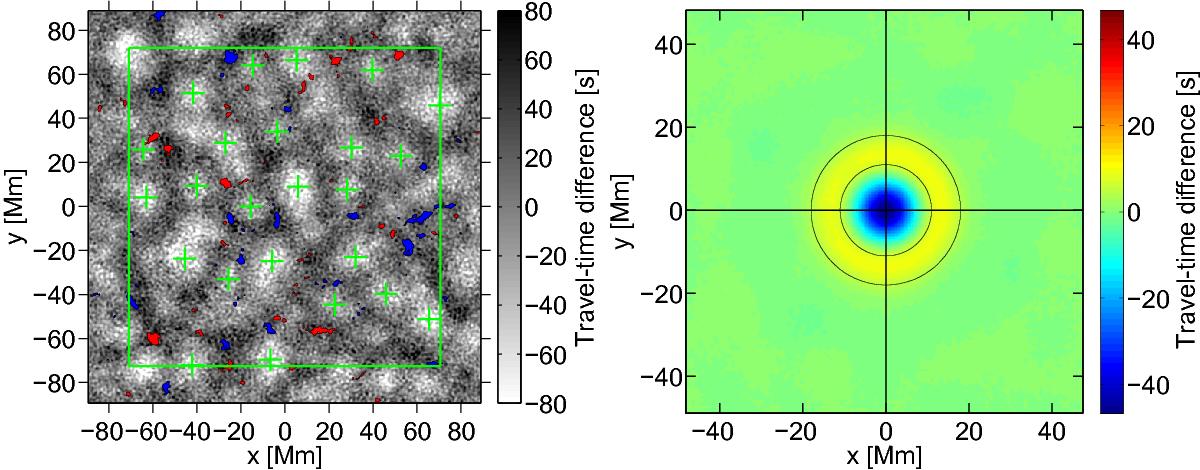

Left: positions (green crosses) of centers of supergranules identified near disk center on 2 May 2010. Supergranules that are outside of the green frame have been discarded. The grayscale image shows the f-mode travel-time differences (white is for outflows, black for inflows) using 8 h of SDO/HMI observations. The colorbar is truncated in the range between −80 and 80 s. The filled contours denote areas where the HMI line-of-sight magnetic field averaged over 8 h exceeds 20 Gauss in absolute value (red is positive field strength, blue is negative). Right: travel-time map for the average supergranule, where negative (positive) values correspond to horizontal outflows (inflows). The black circles have radii of 11 and 18 Mm.

This figure is made of several images, please see below:
