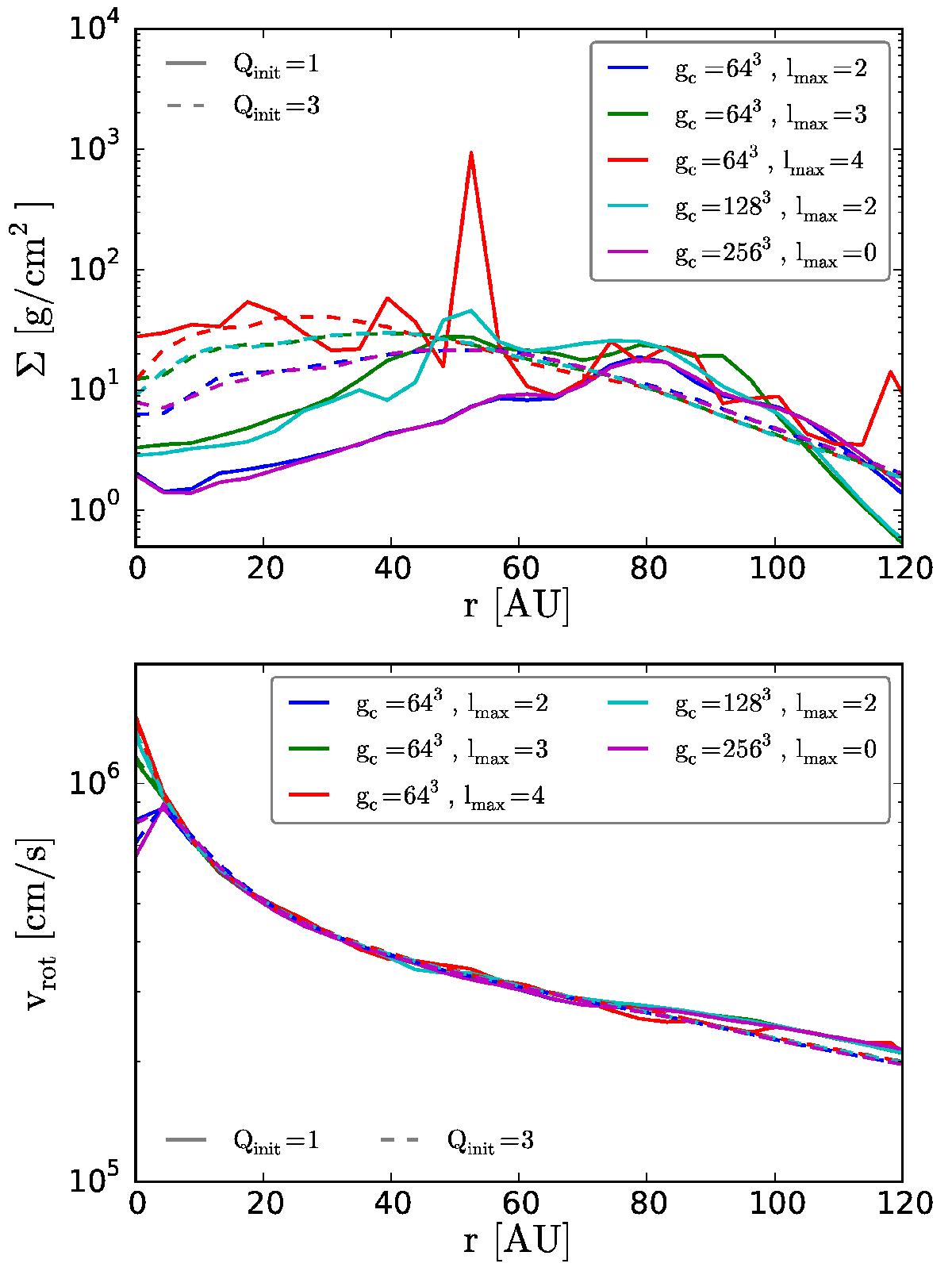

Fig. 7


Radial profiles of column density Σ and rotational velocity vrot for all simulations with Rdisk = 100 and t = 1.5 Tdisk. The runs with Qinit = 3 approximately follow the initially chosen density distribution. The Qinit = 1 disks show peaks at radii with distinct clumps or spiral structure (compare Figs. 5 and 6). The velocity profiles show only minor deviations from the general trend, which are due to the turbulent velocity in the most unstable regions.

This figure is made of several images, please see below:
