Fig. 9

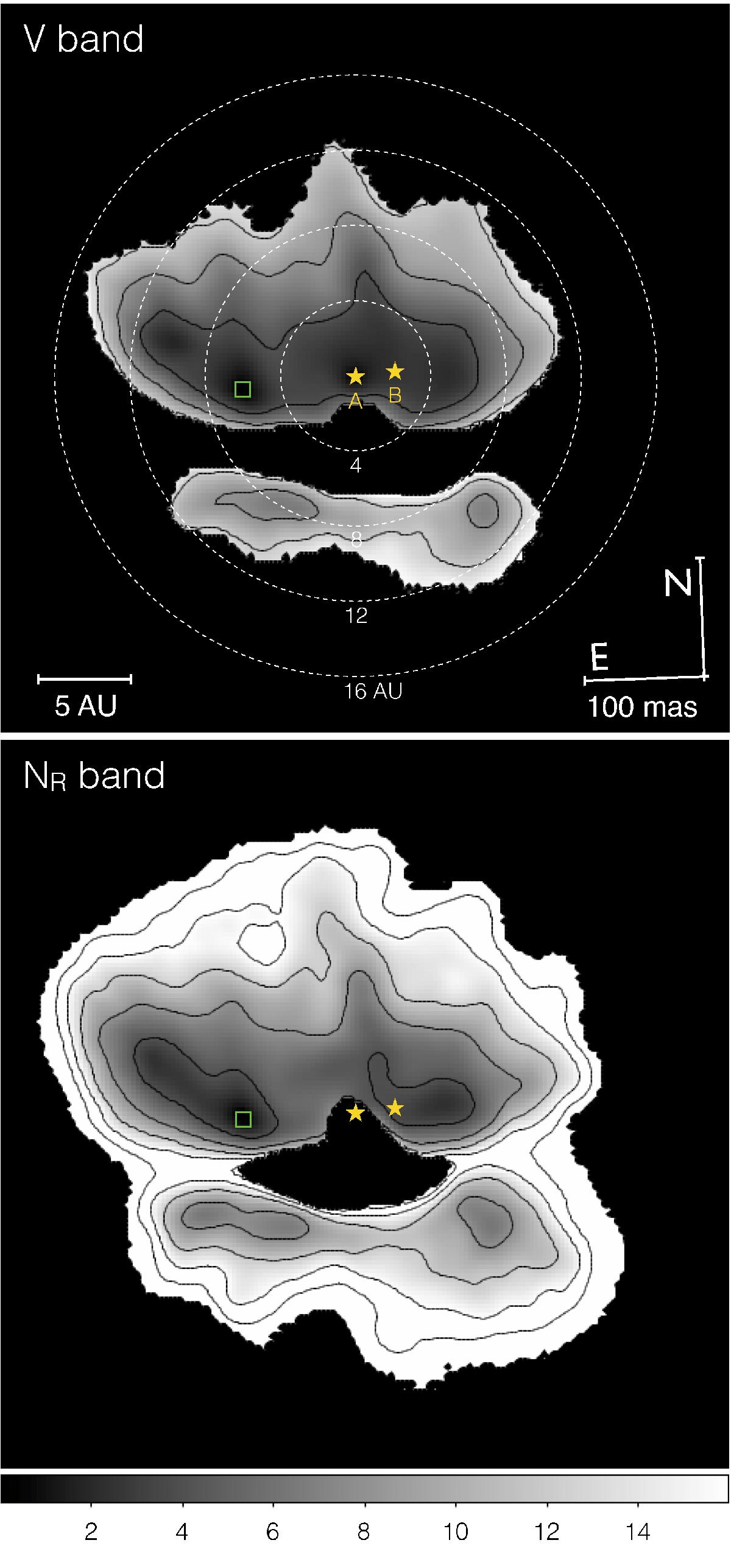

Map of the altitude of the scattering material in front of the plane of the sky at the distance of L2 Pup, expressed in astronomical units. The top panel shows the map derived from the V band observations while the lower panel shows the NR band result. The positions of the AGB star and its companion are marked with star symbols, and the location of minimum altitude is shown with a green square. The gray scale is linear between 0 and 16 AU, and the contour curves are separated by increments of 4 AU from 0 to 20 AU. The field of view is 0.60″ × 0.60″.
