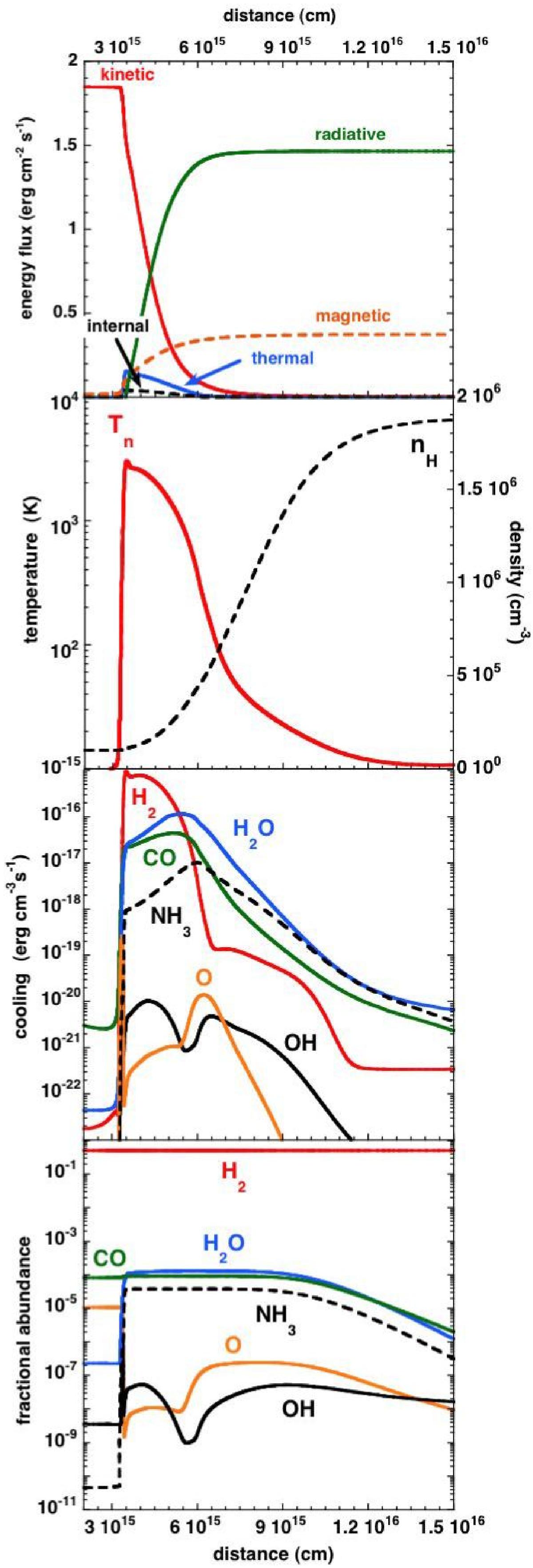

Fig. 2

Top panel: principal modes of energy transportation through a C-type shock wave of speed vs = 25 km s-1, propagating into molecular gas of density nH = n(H) + 2n(H2) + n(H+) = 105 cm-3, with an initial transverse magnetic field strength B = 316μG. Second panel: thermal and density profiles. Third panel: rates of cooling by the main coolants, per unit volume of gas. Bottom panel: fractional abundances of these coolants, relative to nH.
