Fig. 22

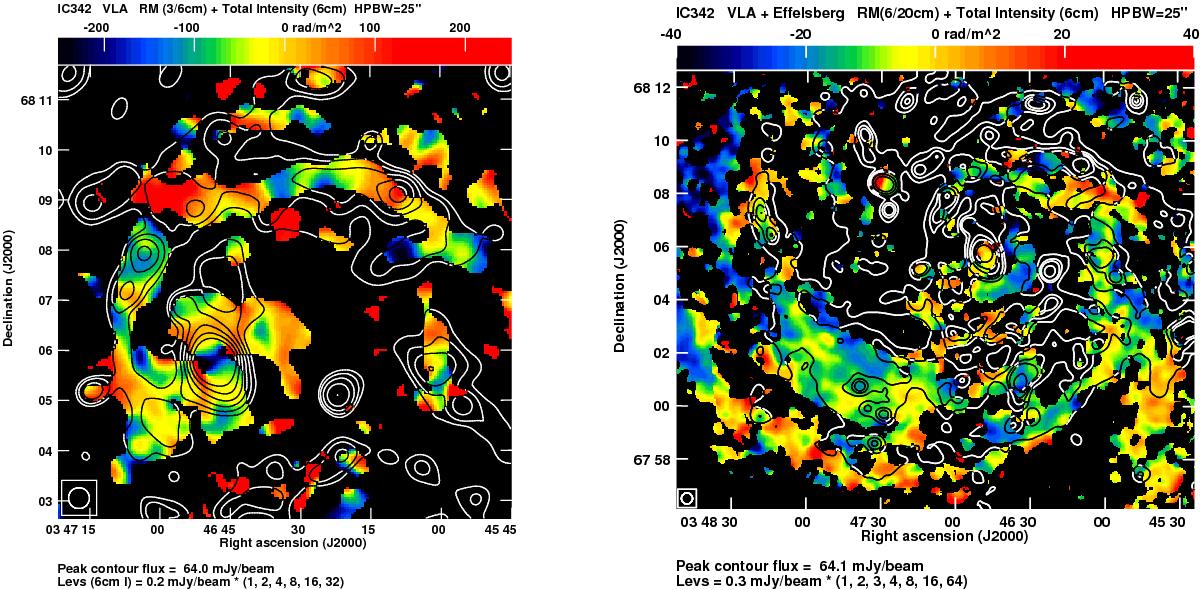

Left: RMs between λ3.5 cm and λ6.2 cm (VLA only) at 25′′ resolution in the central and northern regions of IC 342 at points where the polarized intensities at both wavelengths exceeds 3 times the rms noise (taken from that in Q and U). Contours show the total intensity at λ6.2 cm. Right: faraday rotation measures RM between λ6.2 cm (VLA+Effelsberg) and λ20.1 cm (VLA) at 25′′ resolution at points where the polarized intensities at both wavelengths exceeds 3 times the rms noise. Contours show the total intensity at λ6.2 cm.

This figure is made of several images, please see below:
