Fig. 4

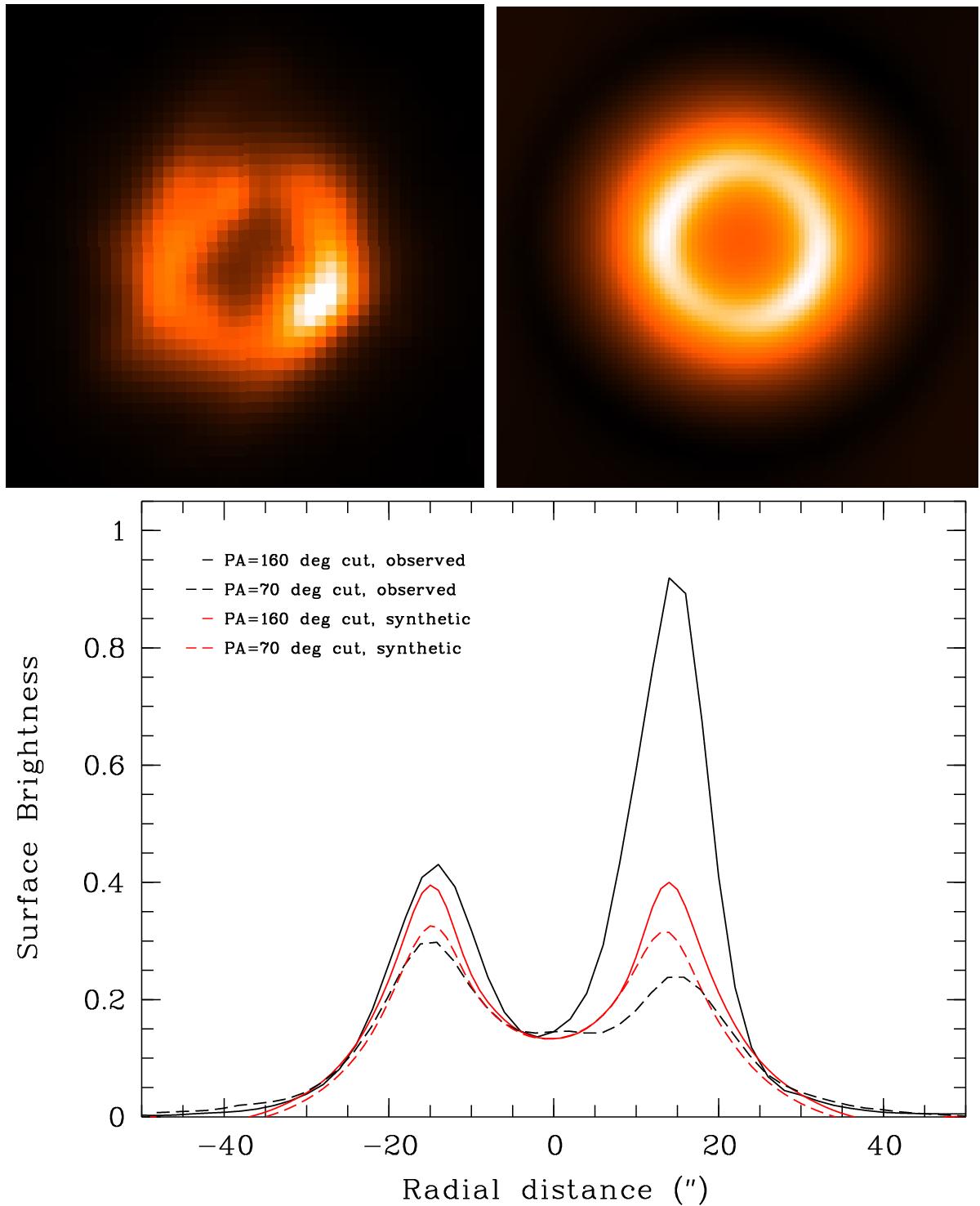

Top left: the 1.5′ × 1.5′ image of the nebula around AG Car observed with PACS at 70 μm. North is up and east to the left. Top right: the synthetic image computed with 2-Dust using rin = 14″ and rout = 42″ and convolved with the PACS PSF. Bottom: cuts with PA = 160° and 70° through the central part of the nebula at 70 μm, observed (black) and synthetic (red) ones.
