Fig. 9

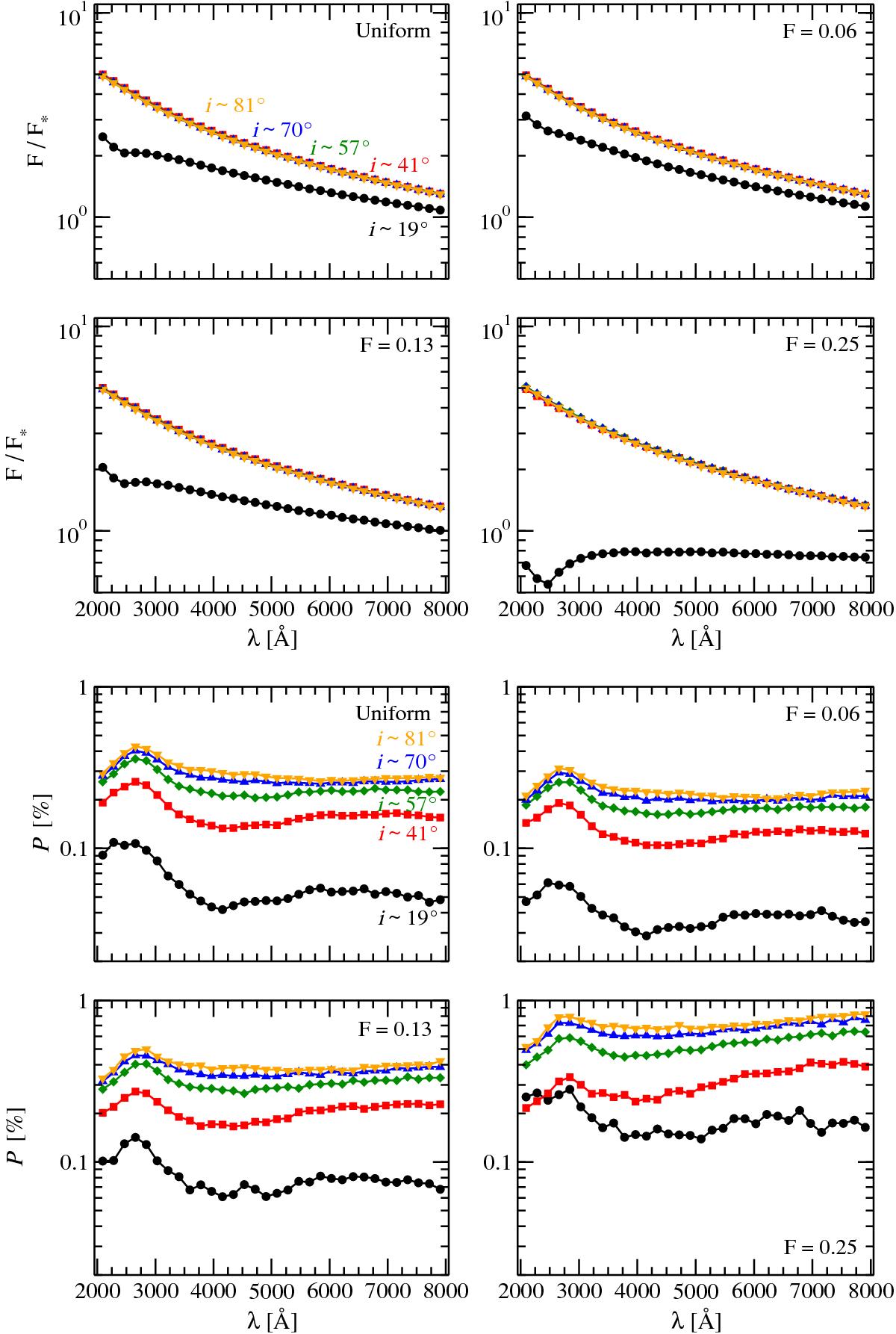

Modeling an optically thin, dusty, fragmented double-cone with θ0 = 30° measured relative to the symmetry axis. The fraction F/F∗ of the central flux (upper panel) and the spatially integrated polarization P (lower panel) are seen at different viewing inclinations, i, from 2000 to 8000 Å.
This figure is made of several images, please see below:
