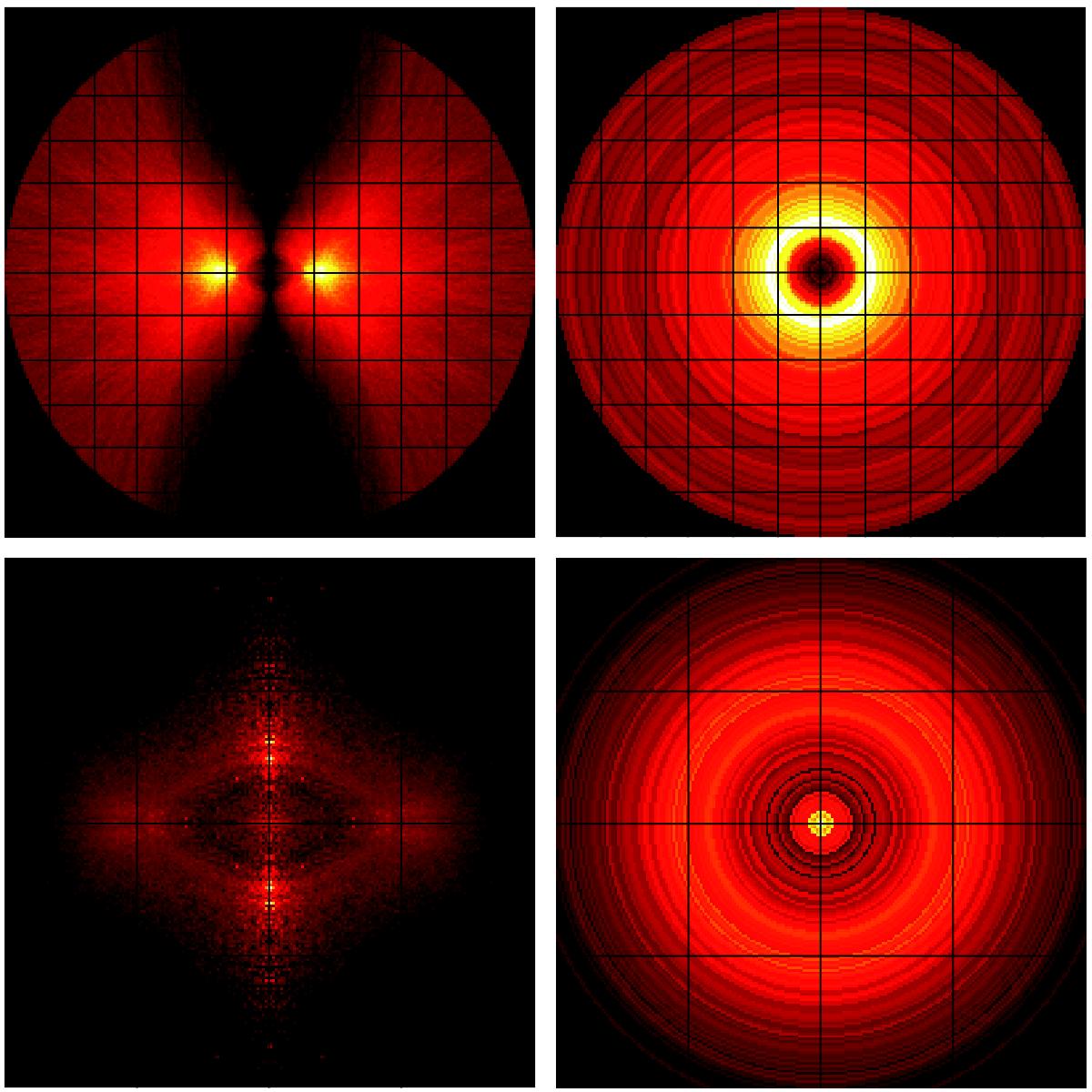

Density of captured DMPs at present time t_S/T_p ≈ 4 × 10⁸ for the dark map at m_p/M = 10^-3 and u/v_p = 0.035. Top panels: DMP surface density ρ_S ∝ dN/ dzdr_ρ shown at the left in the cross plane (0,y,z) perpendicular to the planetary orbit (data are averaged over ), at the right in the planet plane (x,y,0); only the range | r| ≤ 6 around the center is shown. Bottom panels: corresponding DMP volume density ρ_v ∝ dN/ dxdydz at the left in the plane (0,y,z), at the right in the planet plane (x,y,0); only the range | r| ≤ 2 around the SMBH is shown. The color is proportional to the density with yellow/black for maximum/zero density.
