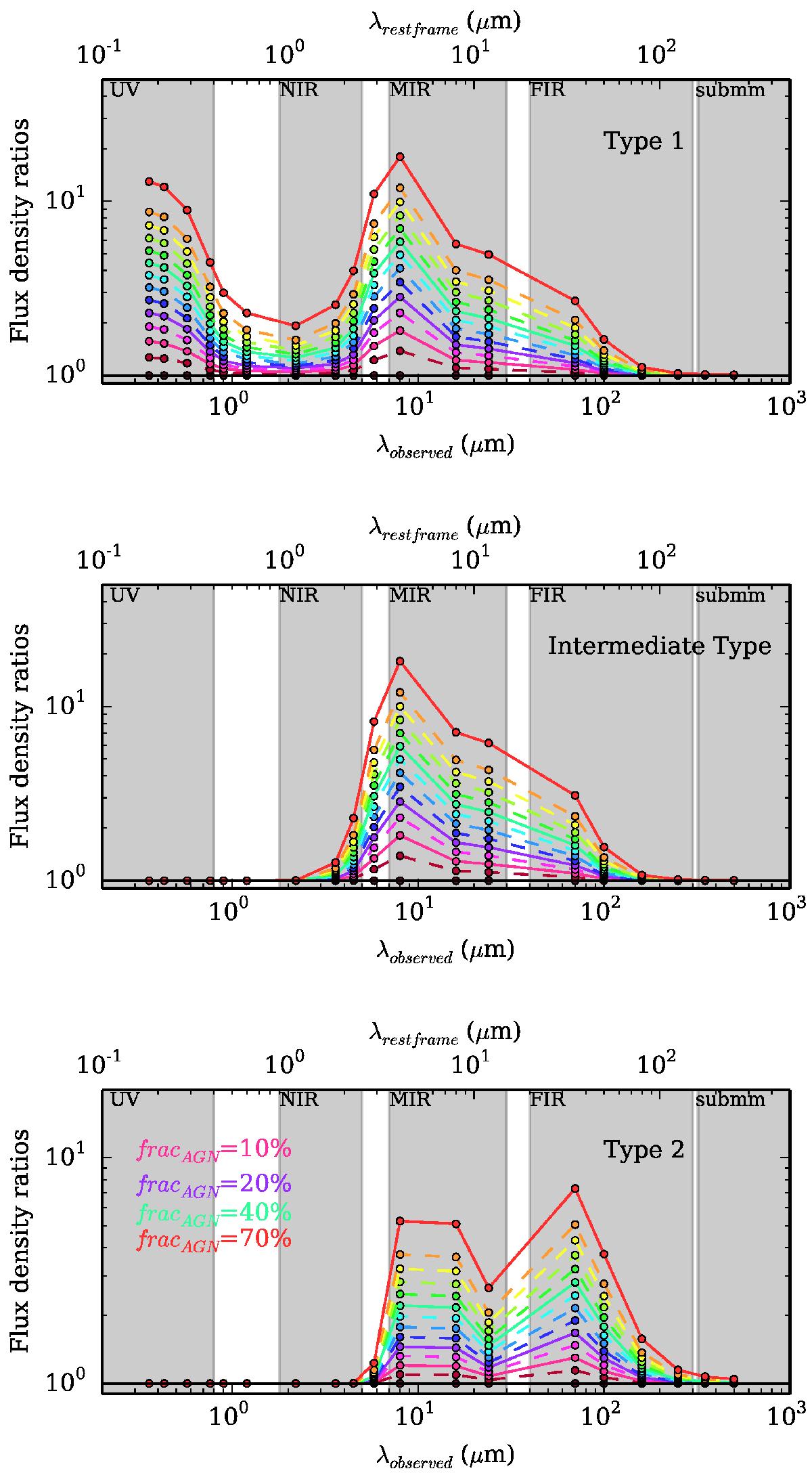

The SEDs of Fig. 3 normalized to the SED with no AGN emission, i.e. frac_AGN = 0. The three panels correspond to one of the Fritz et al. (2006) templates presented in Table 1: upper panel is for Type-1 AGN; the middle panel corresponds to the intermediate AGN type, and the lower panel is for the Type-2 AGN. The grey regions indicate different rest frame spectral domains from UV to sub-mm. Normalized SEDs are colour-coded according to the frac_AGN parameter. Solid coloured lines indicate specific SEDs, i.e. where frac_AGN = 10% (pink), 20% (purple), 40% (green), and 70% (red).
