Fig. 11

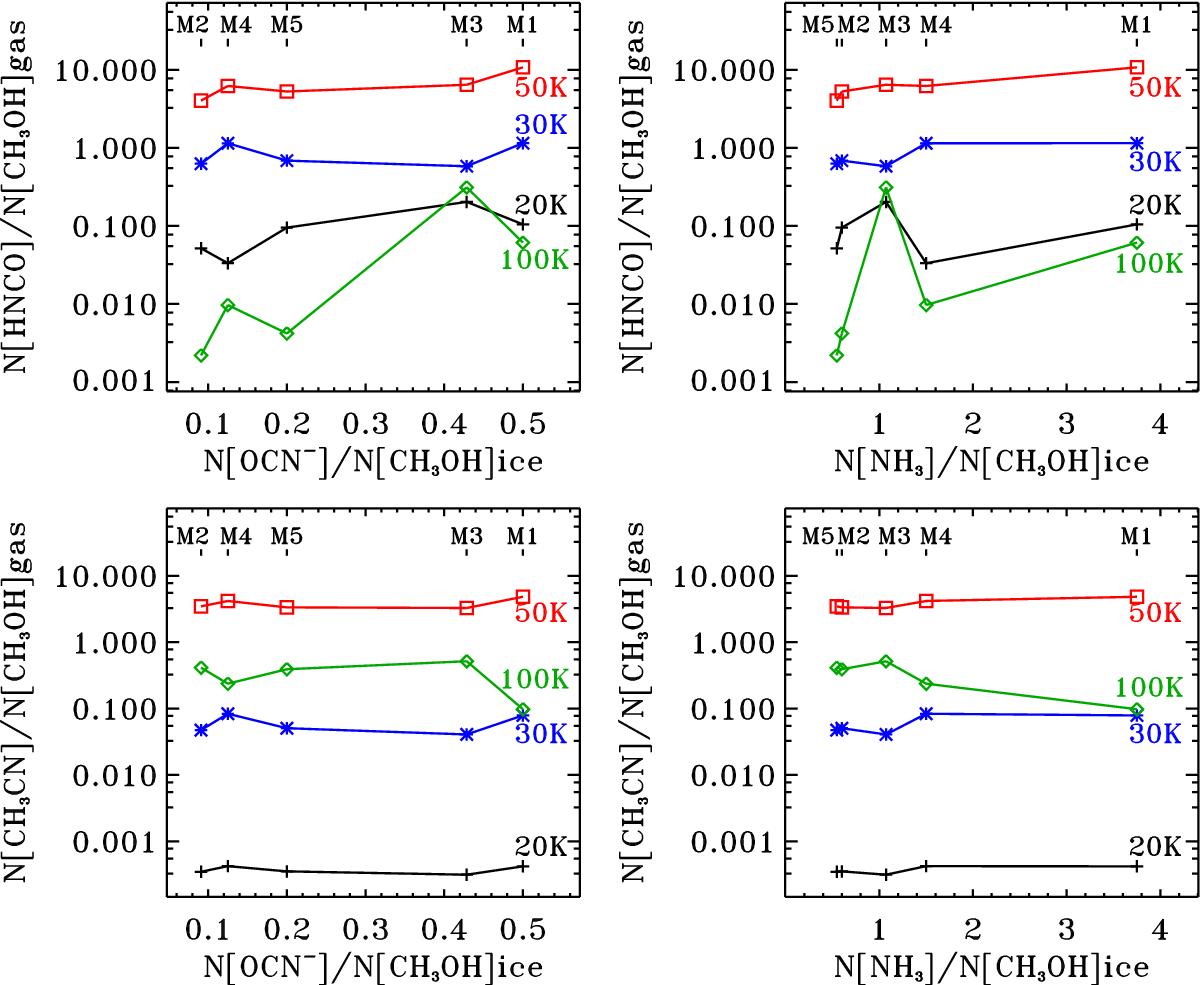

Model ice versus gas abundance correlation from the MAGICKAL model (Garrod 2013). Five initial ice abundances (M1 to M5) are used to run the models and derived N-bearing abundances with respect to CH3OH. The black plus signs present the results at 20 K, the blue crosses are the model results at 30 K, the red squares represents 50 K, and the green diamonds are the results at 100 K.
