Fig. 6

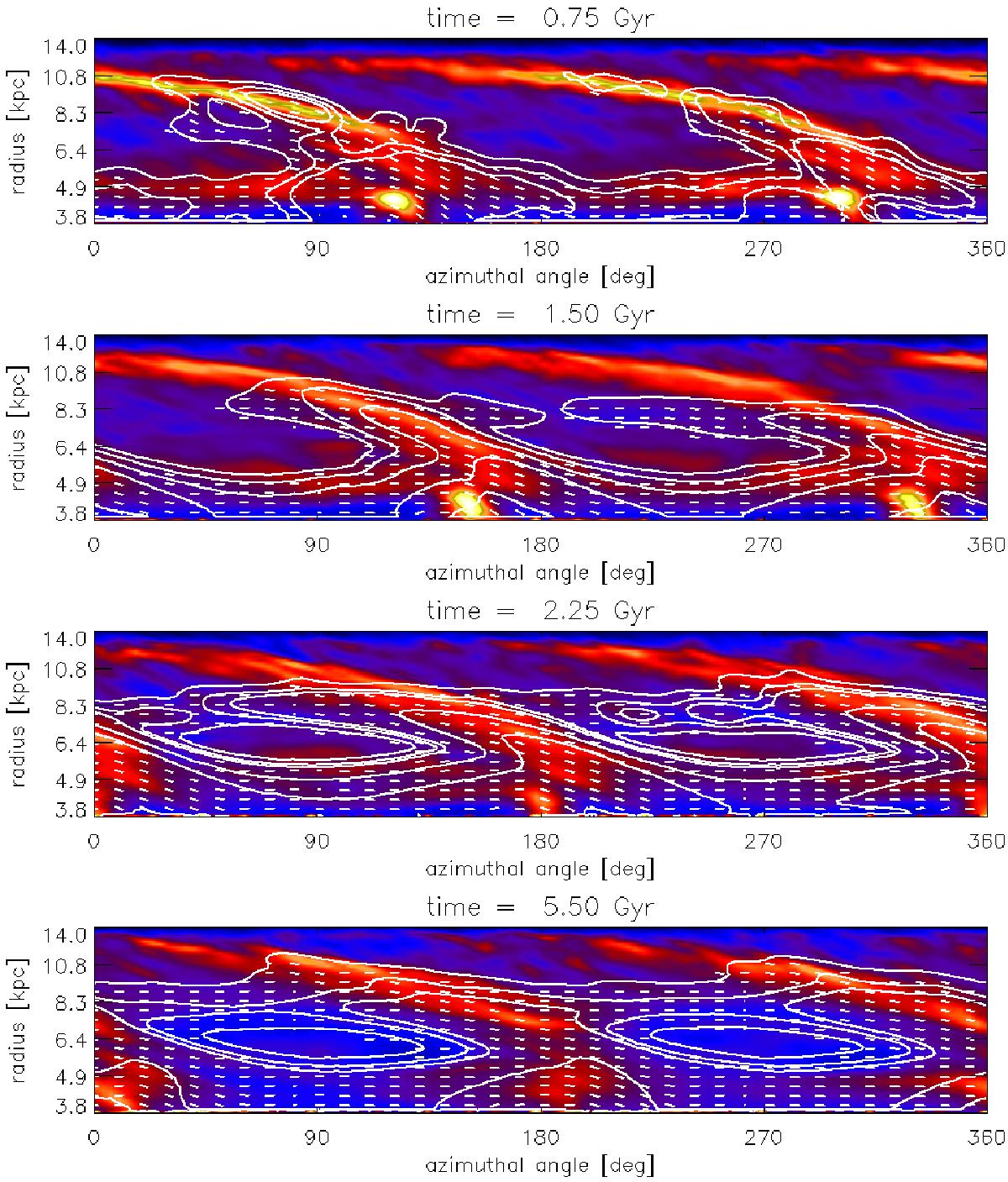

Distribution of polarized intensity and B-vector orientations for the reference model RM (S200) superimposed onto the gas density at λ = 6.2 cm in the frame of azimuthal angle in the disk and ln(r). The map has been smoothed down to the resolution of 40′′.

This figure is made of several images, please see below:
