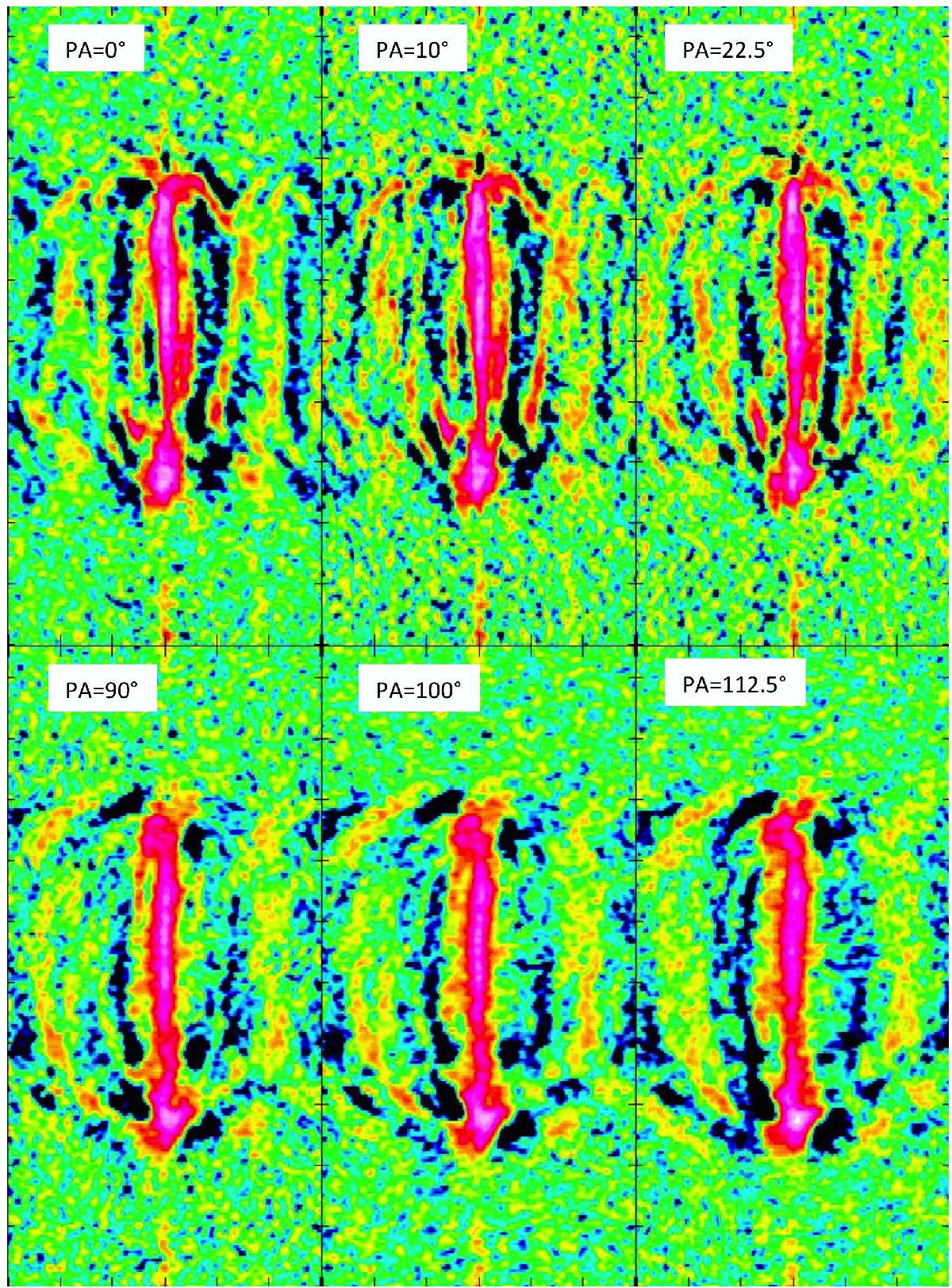

Fig. 12
Position-velocity diagram of 13CO J = 6–5 for a slit width of 51 pixels at different position angles, indicating in the top left corner of each panel. The same color wedge has been used as in Fig. 11. The position angles at top and bottom row differ by 90°. The offset (x-axis) ranges from −6′′to 6′′, the velocity (y-axis) from 0 to −55 km s-1.
