Fig. 12

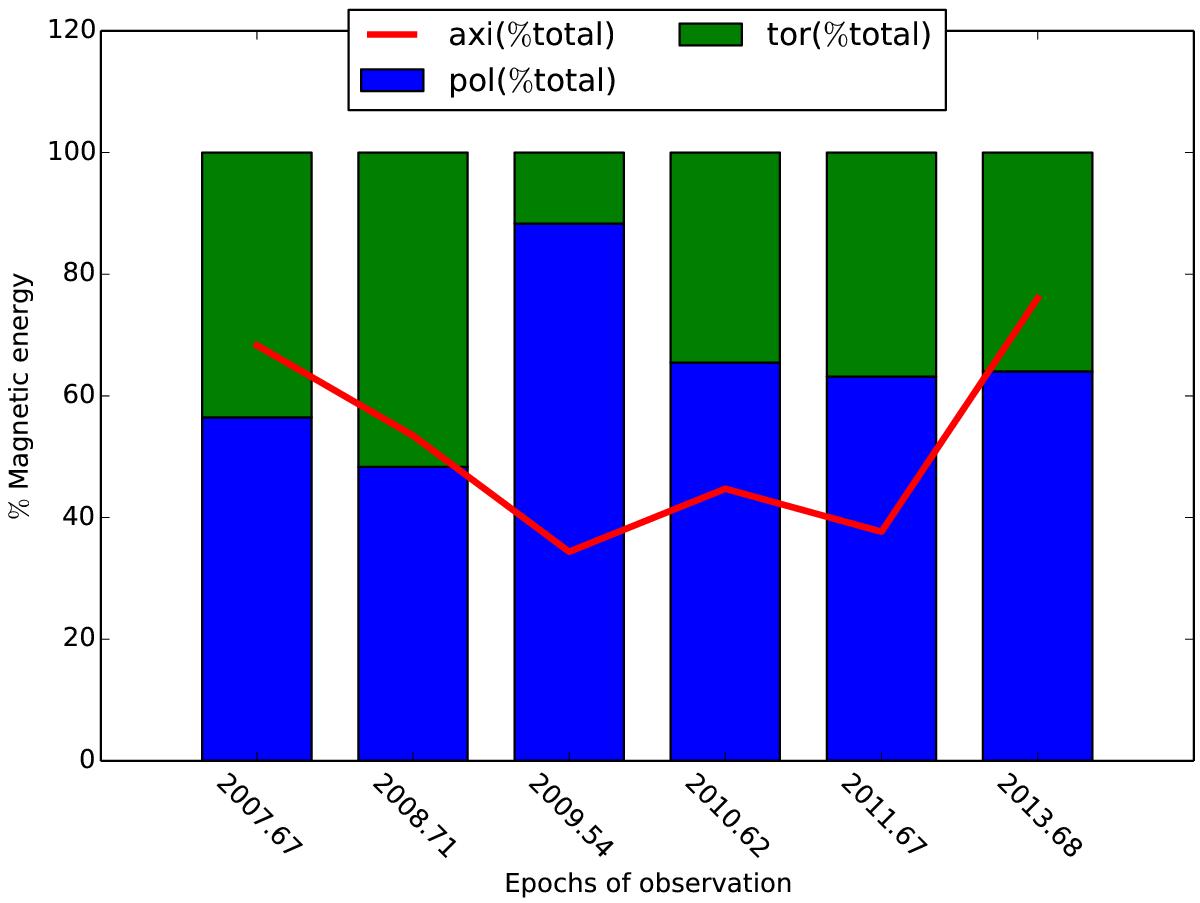

Magnetic energy distribution throughout the six epochs (2007.67, 2008.71, 2009.54, 2010.62, 2011.67, and 2013.68). The fraction of magnetic field stored in poloidal component is shown in blue and toroidal component in green.The red line represents the fraction of the energy stored in the axisymmetric component. The error bars associated with each epoch are shown in Table 2.
