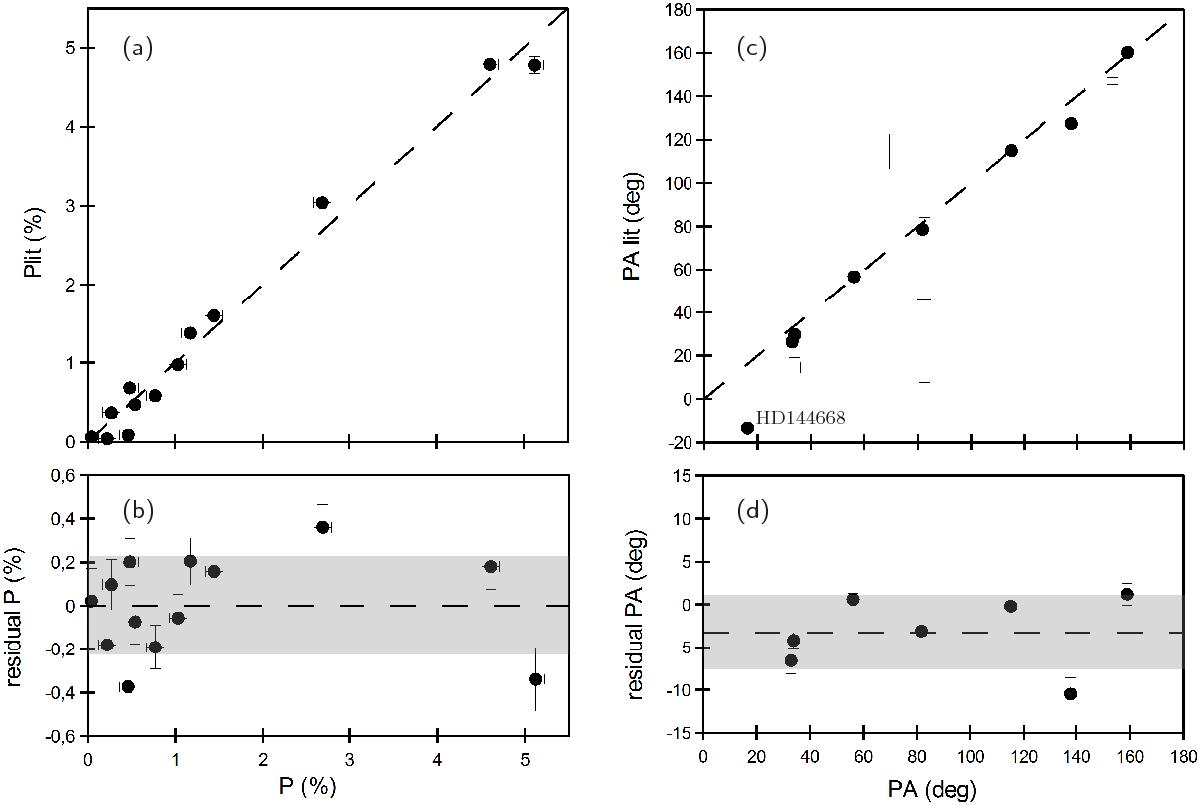

Fig. 7

Comparison of synthetic V broad-band linear polarization from
ESPaDOnS and literature values. a) The abscissa is the degree of
polarization (P) measured using ESPaDOnS. The ordinate is the
literature value (Plit). The dashed line represents
Plit = P. b) The
residual (Plit
− P). The gray zone indicates a one-sigma
dispersion around the mean value: 0 ± 0.23% (dashed line). c) The abscissa is the polarization
position angle (PA) measured using ESPaDOnS. The ordinate is the literature value
(PAlit). The
dashed line represents PAlit = PA. The black dots are objects with
P>
0.5% and crosses with P< 0.5%. The PA variable HD 144668 is labeled. d) The residual
(PAlit − PA)
only for objects with P> 0.5%. The gray zone indicates a one-sigma
dispersion around the mean value: −33
±
4
3.
