Fig. 11

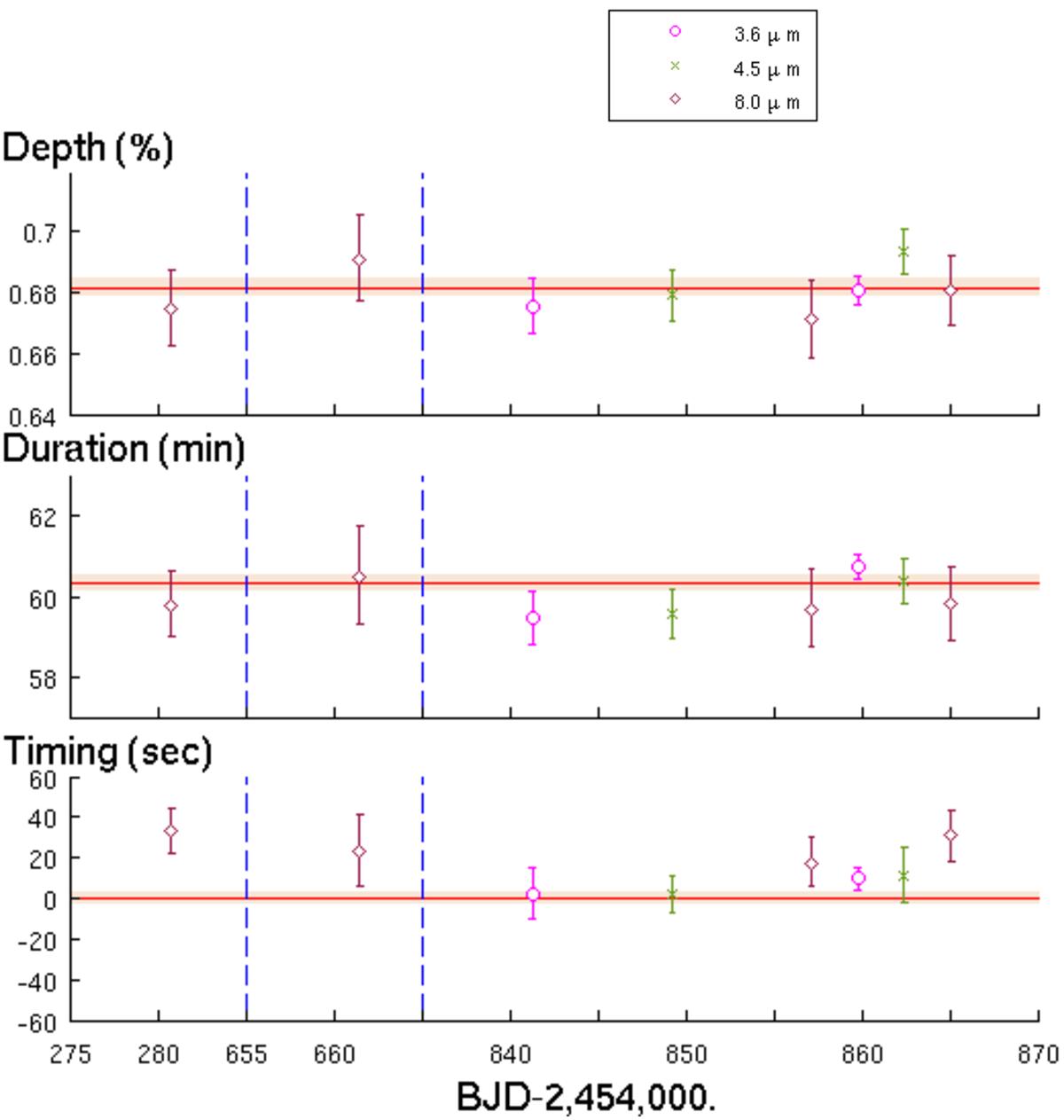

Transit parameter variations. From top to bottom, the plots respectively show the transit depth, the transit duration, and the transit timing variation with their error bars according to time for the different IRAC channels. The pink dots stand for the 3.6 μm channel, the green crosses for the 4.5 μm channel, and the brown diamonds for the 8 μm channel. The vertical dashed blue lines indicate temporal caesura in the x-axis. The horizontal red lines present in the two top panels respectively indicate the transit depth and duration derived from the global analysis. The shaded surrounding area is its 1σ error bar.

This figure is made of several images, please see below:
